Wide compatibility and advanced scanning

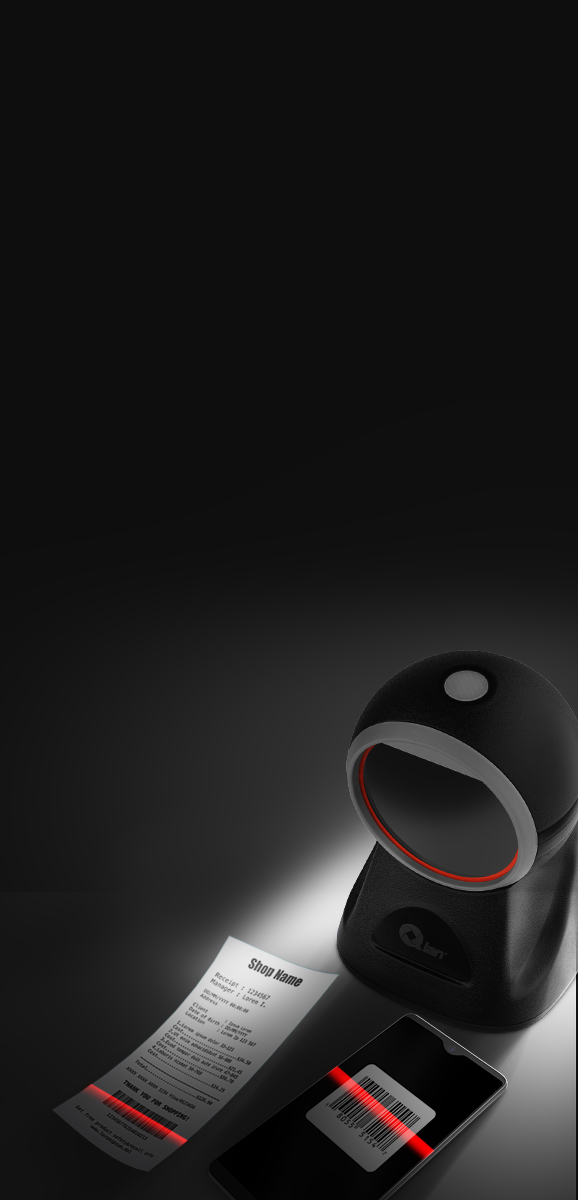

Supports reading 1D/2D barcodes on paper and screens.
- Home
- QIAN PC
- POS Solutions
- BUSINESS WE TRUST
- AUTHORIZED DISTRIBUTORS

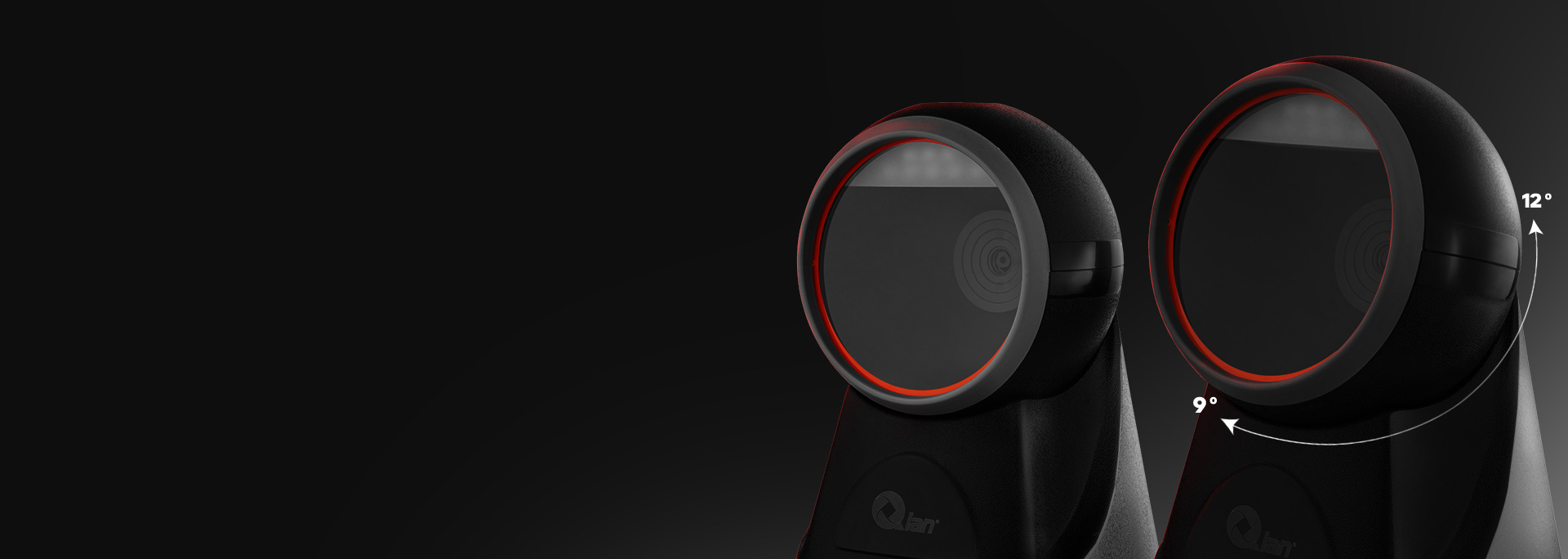

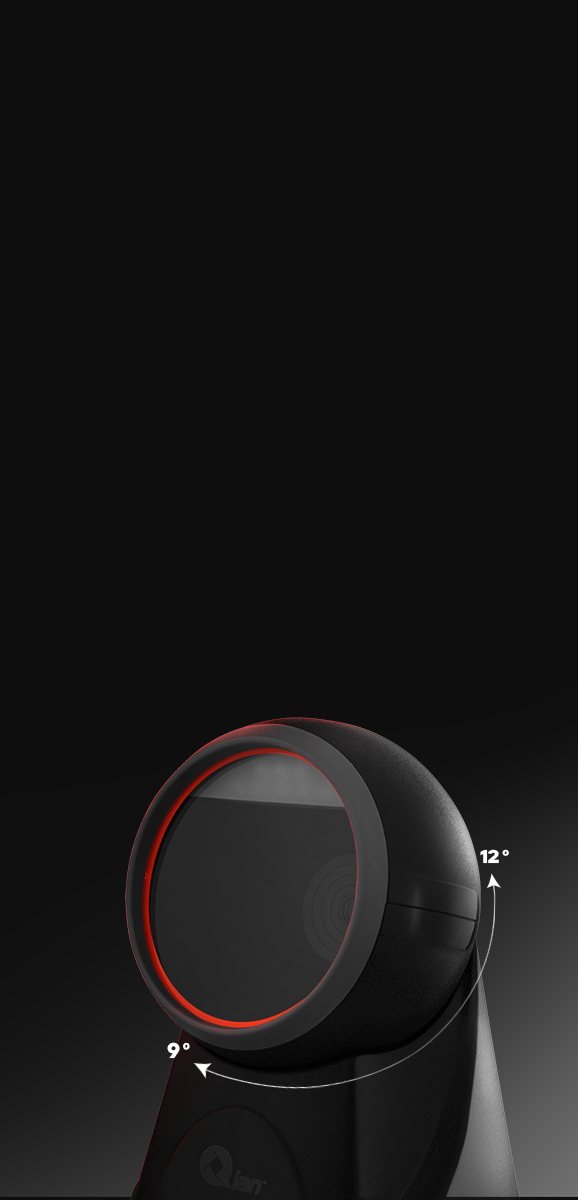

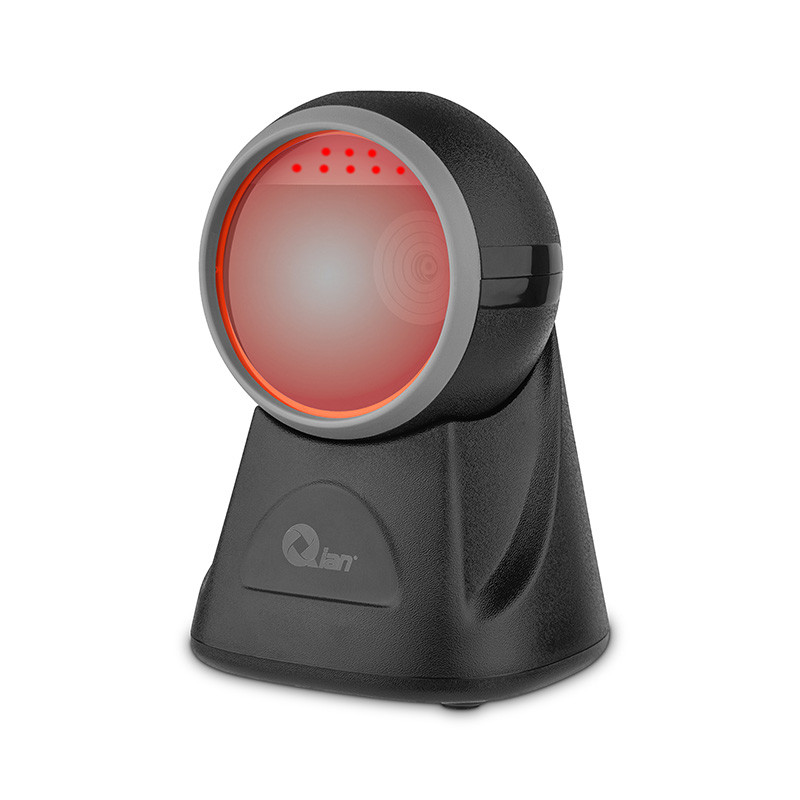

Scanning angle adjustable
Thanks to its adjustable head, this reader allows you to modify the scanning angle up to 21° to adapt to any situation.
Perfect for tight spaces or labels in awkward positions.

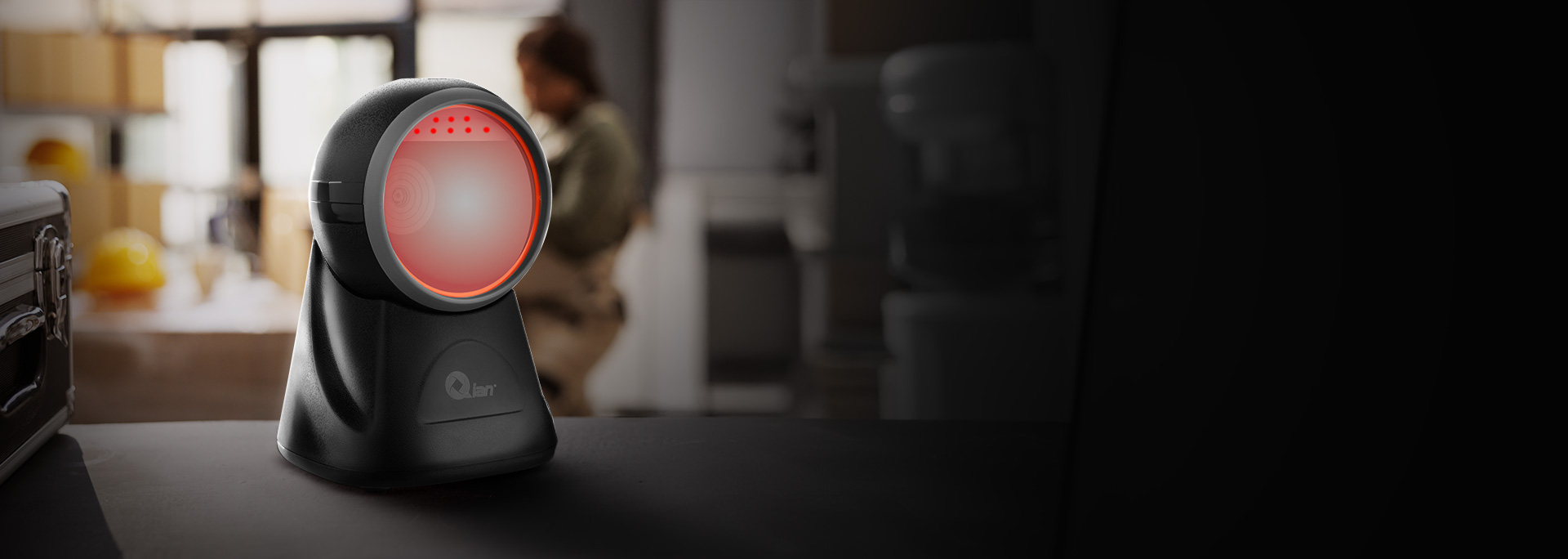

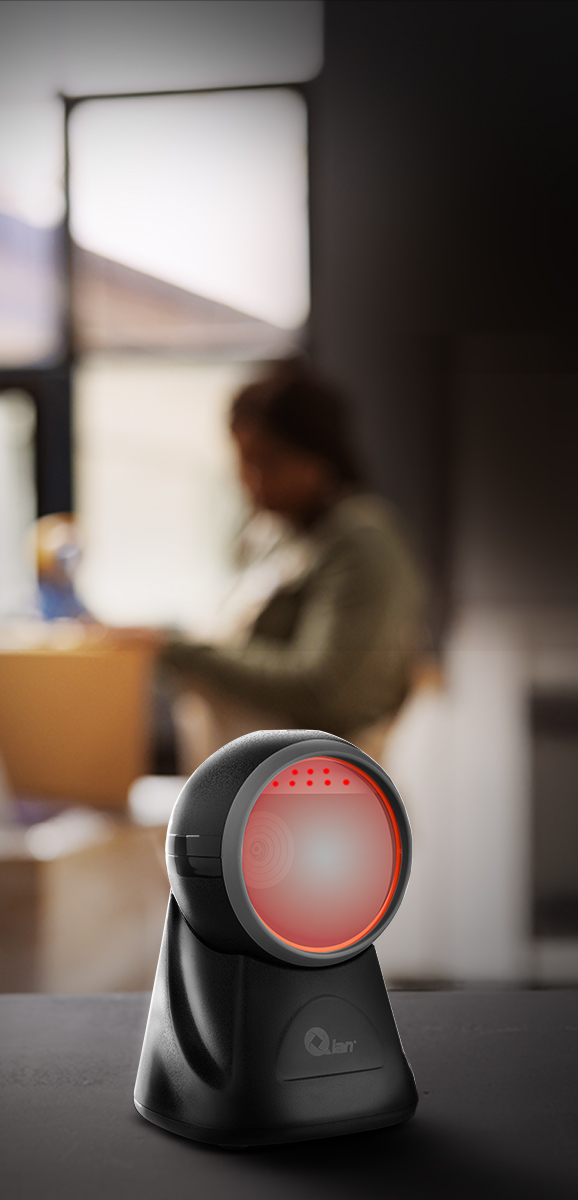

Always ready to use
With auto-activation mode, this reader turns on only when it detects a code and goes into sleep mode when not in use. You can also choose between continuous scanning or auto-detection, optimizing efficiency at all times.

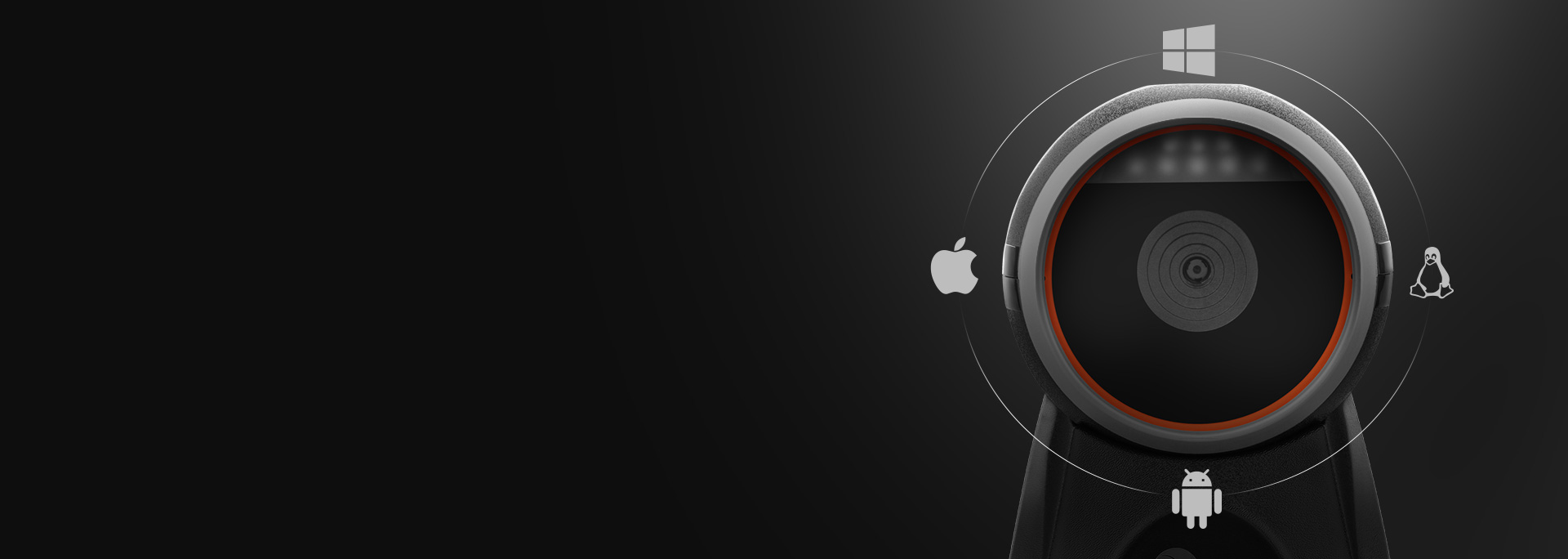

Compatible with multiple operating systems
Fully compatible with a wide range of operating systems, including Windows (XP, 7, 8, 9, 10, 11), Android, Mac, and Linux. No matter the platform you use, you'll enjoy reliable, hassle-free performance.

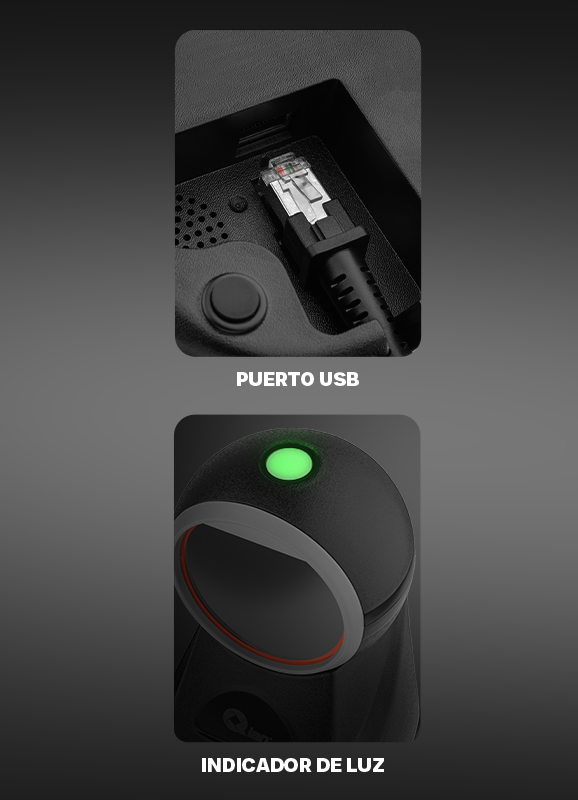

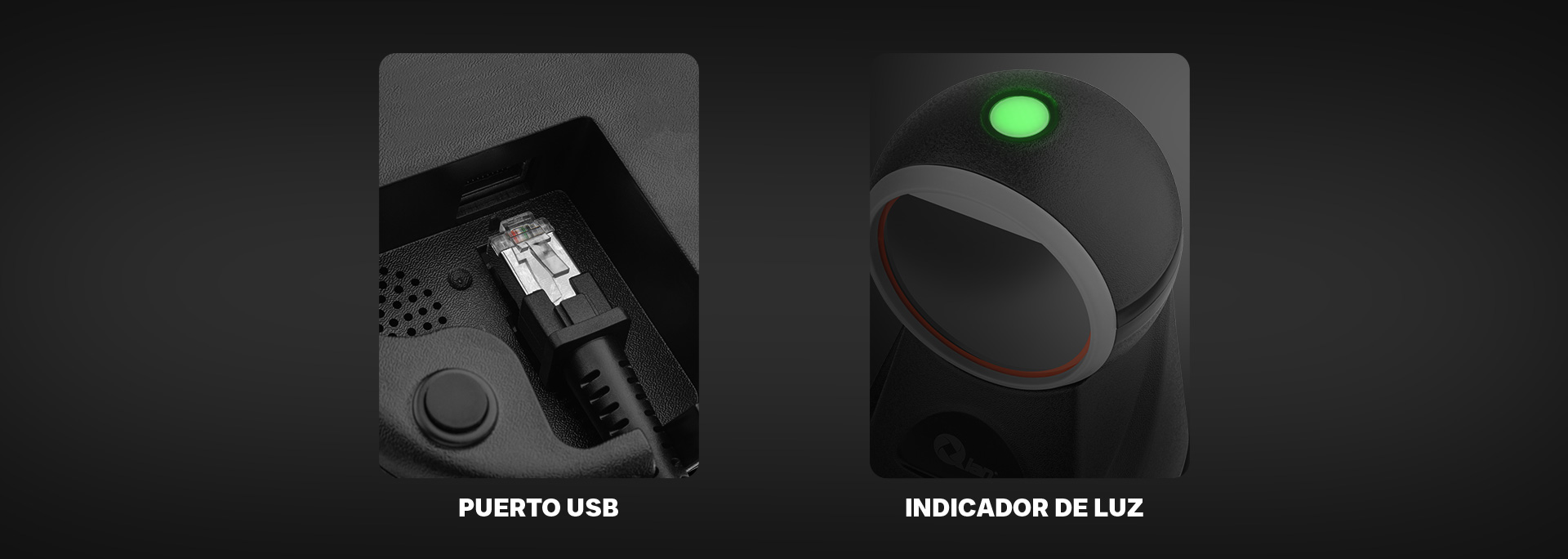

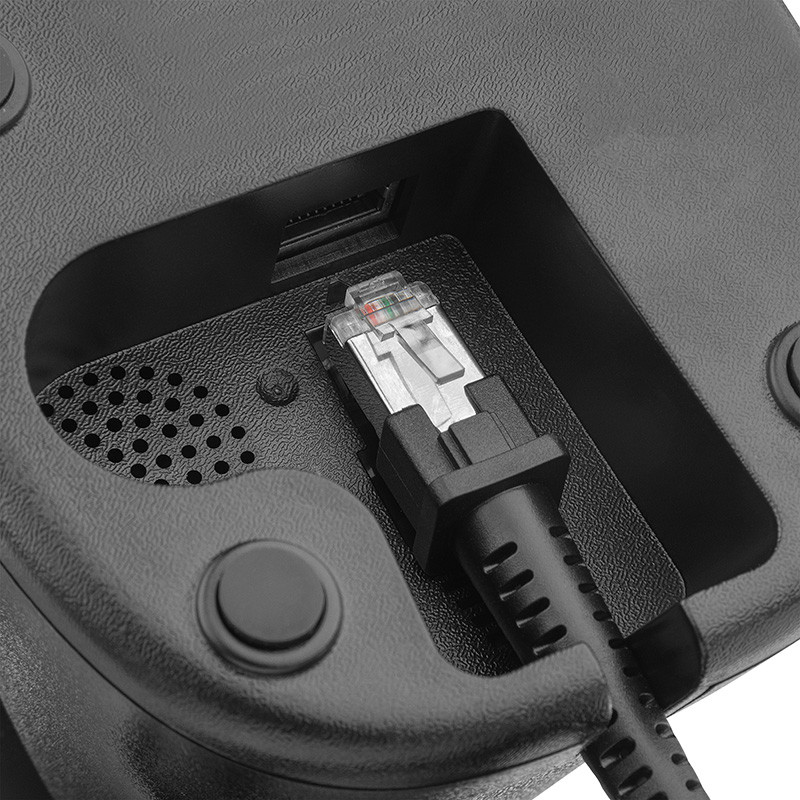

| INTERFACE | USB (USB2.0) |
| VOLTAGE | Working voltage: 5V±5% VDC |
| CURRENT | 180mA (Working); 120mA (Standby) |
| INDICATOR | LED / buzzer |

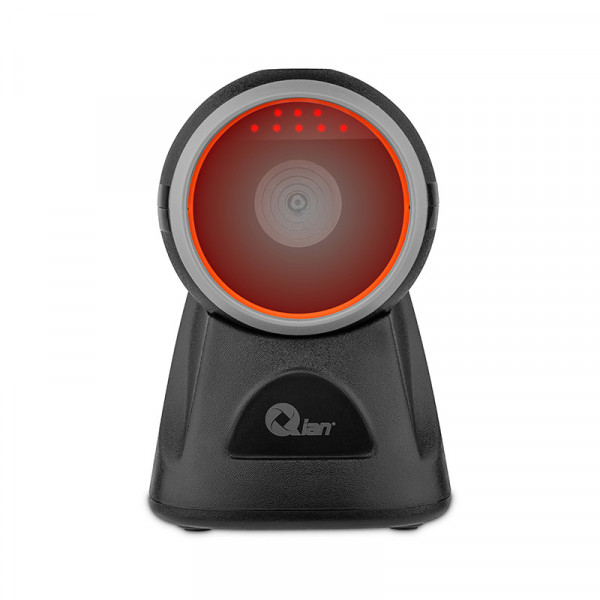

| LIGHTING SOURCE | Red color LED (Illumination) |
| SENSOR | CMOS, global shutter |
| SENSOR RESOLUTION | 640 x 480 |
| CONTRAST RATE | ≥20% |
| SCANNING ANGLE | Pitch: ±65°@ 0°Roll and 0° Skew Roll: 360°@ 0°Pitch and 0° Skew Skew: ±65°@ 0°Roll and 0° Pitch |
| LANGUAGE | Support English, Spanish, Czech, French, German, Hungarian, Italian, Japanese, Turkish F, Turkish Q (Support International Keyboard Language) |

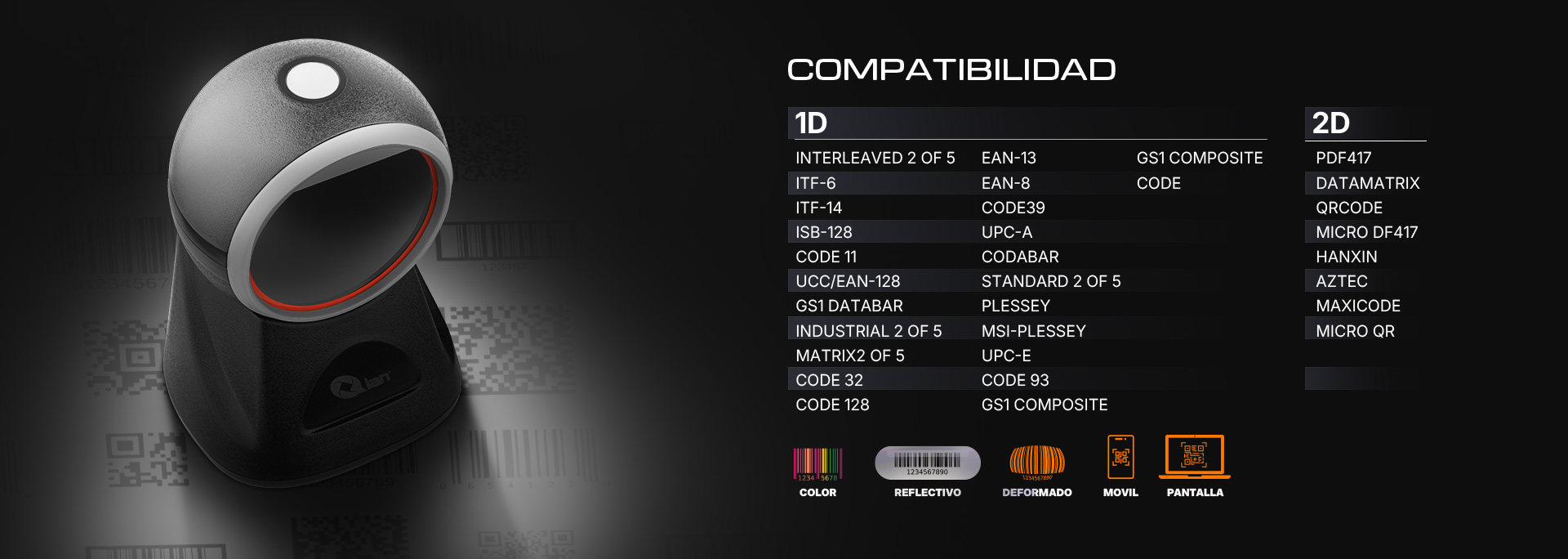

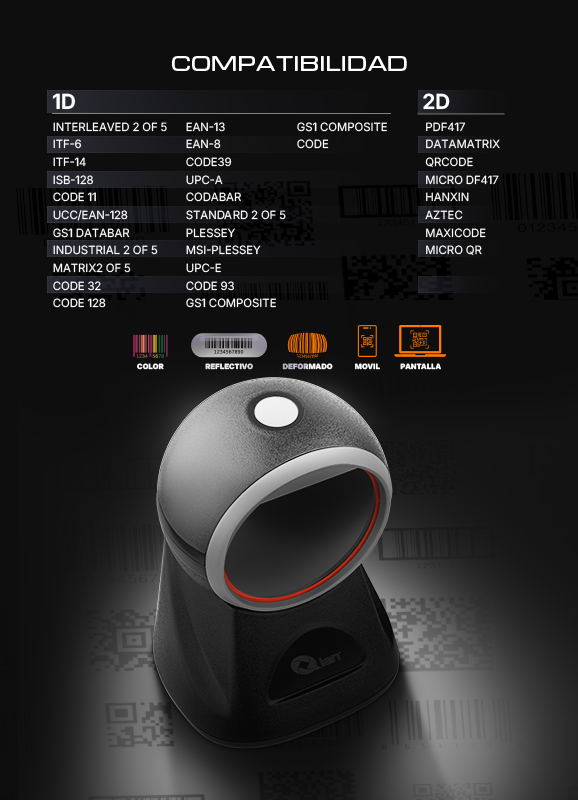

| DECODE CAPABILITY | 1D: Interleaved 2 of 5, ITF-6, ITF-14, ISB-128, Code 11, UCC/EAN-128, GS1 Databar, Industrial 2 of 5, Matrix2 of 5, Code 32, Code 128, EAN-13, EAN-8, Code39, UPC-A, Codabar, Standard 2 of 5, Plessey, MSI-Plessey, UPC-E, Code 93, GS1 composite code 2D: PDF417, DataMatrix, QRCode, Micro DF417, HanXin, AZTEC, Maxicode, Micro QR |
| DECODING DEPTH OF FIELD | QR Code 10.83mil: 2cm - 9cm QR Code 20.83mil: 2cm - 21cm Code 39 5.83mil: 1cm - 12cm Code 39 10.83mil: 1cm - 21cm EAN13 9.17: 1cm - 15cm EAN13 10.83: 2cm - 21cm Wechat: 0cm - 43cm Alipay: 0cm - 43cm |
| ADDITIONAL FEATURE | 1. Plug and play 2. Support reading 1D/2D barcodes, including film cover-up, reflections, blurring, wrinkles, color codes, screen codes, long barcodes, etc. |
| OPERATING SYSTEM | Support Windows, Linux, Android, and MAC. |
| SHOCK DROP TEST | 1.2m free fall on concrete surface |
| WORKING ENVIRONMENT | 0℃ to 45℃, 10%~80% (No condensation) |
| STORAGE ENVIRONMENT | -20℃ to 60℃, 10%~90% (No condensation) |
| DIMENSIONS | 155.3mm (L) x 106.2mm (W) x 105mm (H) / 6.1in (L) x 4.2in (W) x 4.1in (H) |
| WEIGHT | 280g±3g/ 0.6lb±0.007lb |
