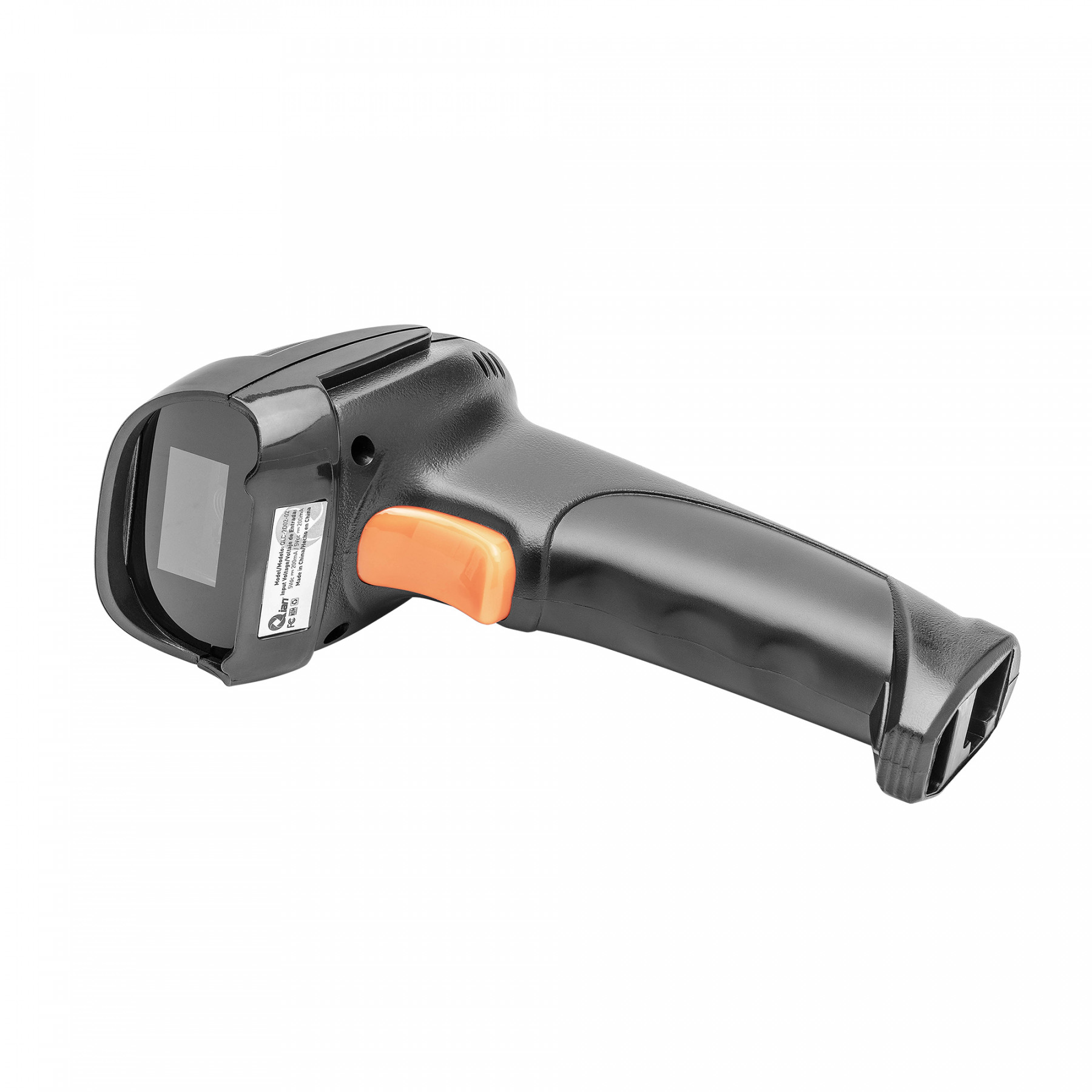

The Tiaoma 2D Barcode Scanner is designed to blend seamlessly into any business environment. With multiple connectivity options, including USB, it adapts to your daily operational needs. It is ideal for businesses looking for efficiency and flexibility in their points of sale or warehouses, facilitating the scanning process without interruptions.
This scanner is compatible with Linux, Android, Windows and Mac, ensuring fast and seamless integration into any business system. Its flexibility makes it the ideal solution for businesses operating with multiple devices and platforms, ensuring smooth operation.

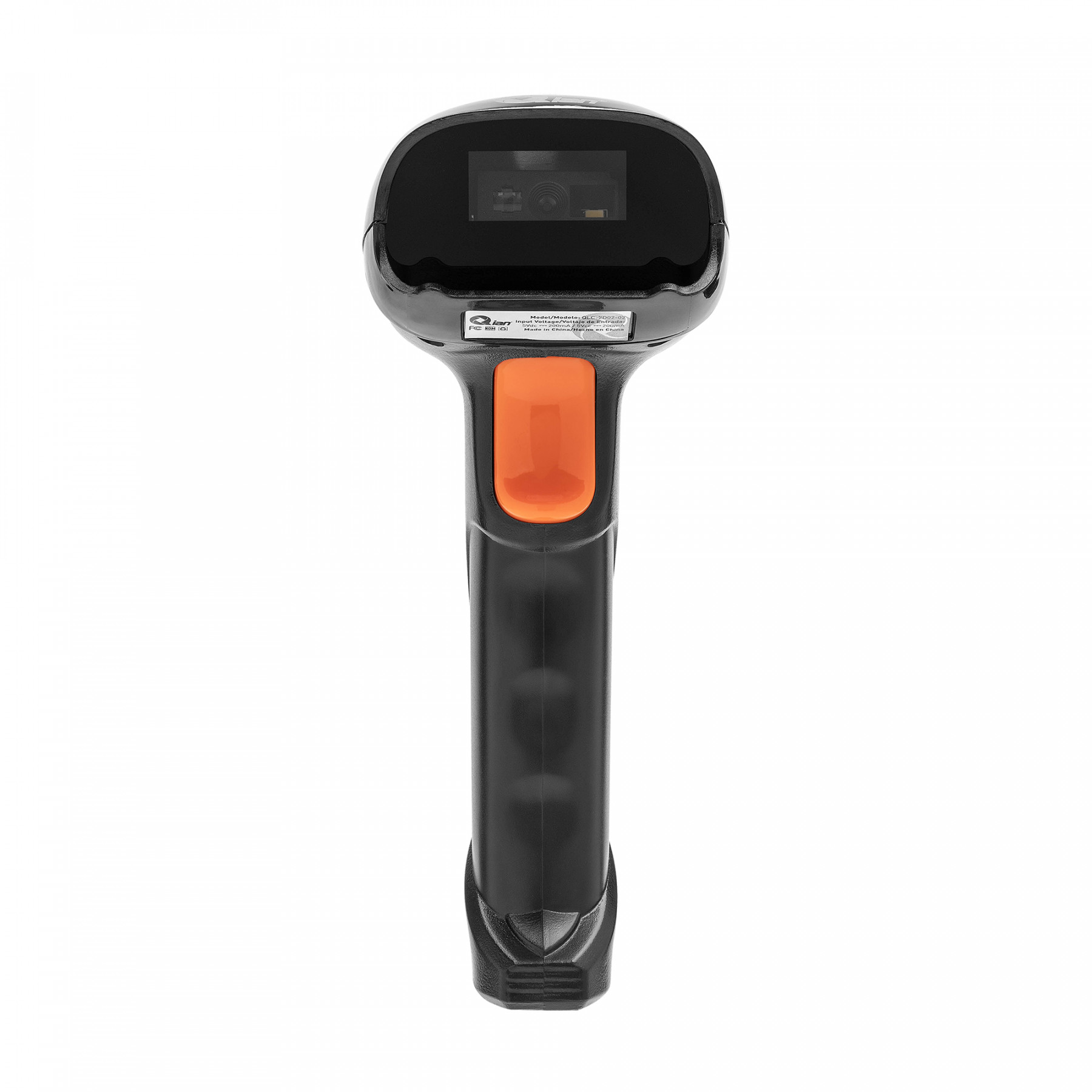

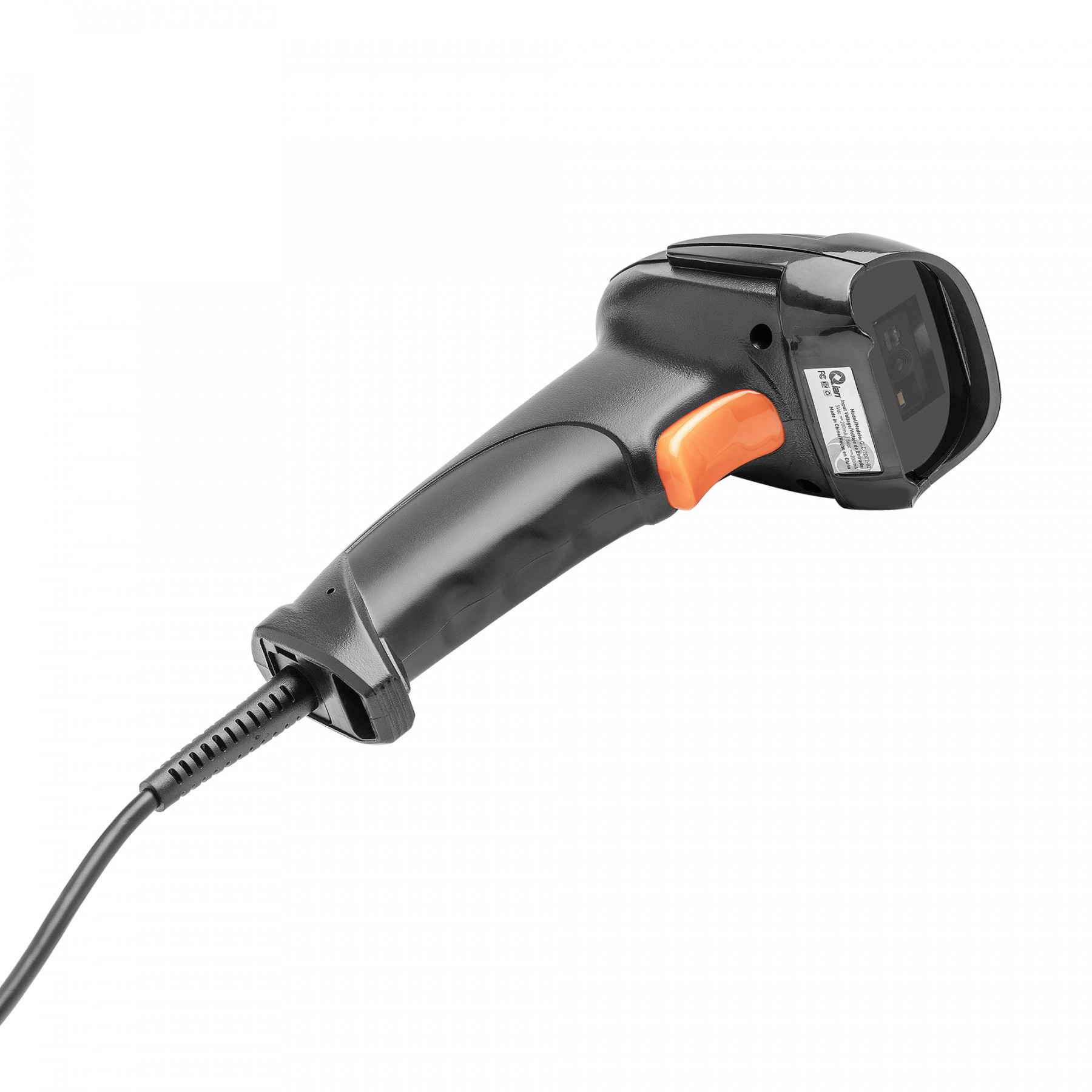

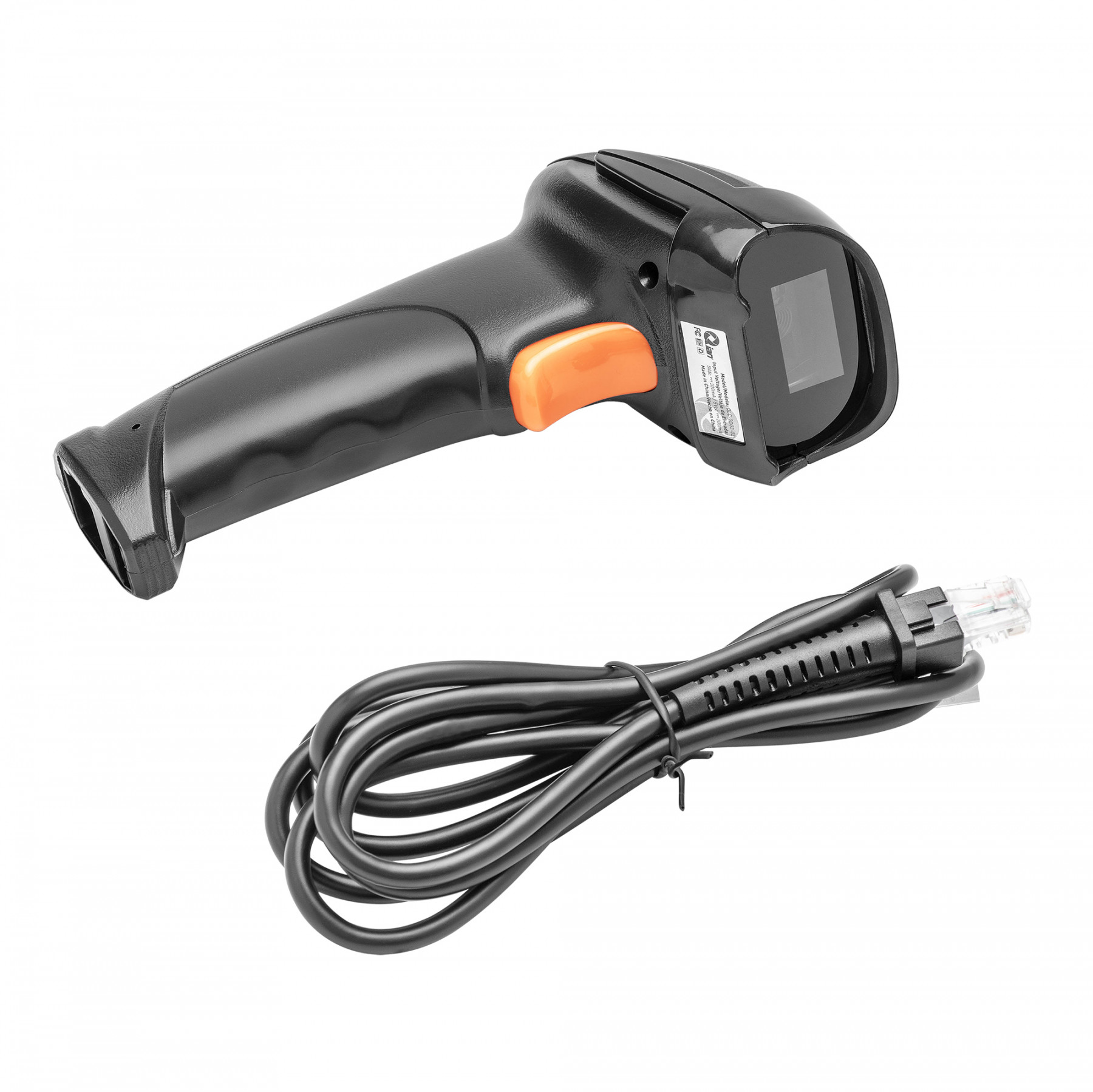

The Tiaoma 2D Scanner is designed to be easy to use, with a simple and direct USB connection. Equipped with a red LED for aiming and a white LED for illumination, it provides an accurate scanning experience, even in low-light conditions. It is the perfect tool for high-throughput work environments.
This scanner supports a wide range of 1D and 2D barcodes, including Data Matrix, QR, PDF417, Micro QR, and AZTEC. Its ability to decode a variety of formats makes it a versatile solution for any type of business, from retail to logistics, providing accuracy and speed with every scan.
| INTERFACE | USB ( USB Cable length: 1.8m) ) |
| VOLTAGE | DC 5V ±5% |
| CURRENT | 168mA (Working)；109mA (Standby)；200mA (Max) |
| LIGHT SOURCE | Red LED (Aiming) + White LED (lighting) |
| PHOTO SENSOR | Planar CMOS sensor |
| SCAN RATE | 200 scans/ seconds |
| SCANNING ANGLE | Pitch: 45°, Roll: 360°, Yew: 45° (Scanning distance: 10mm-600mm) |
| MIN. RESOLUTION | Min 0.1mm (4mil) PCS0.9 |
| MIN PCS VALUE | >30%UPC/ EAN 13(13mil) |
| AMBIENT LIGHT | Up to 100,000lx |
| LANGUAGE | Support Englosh；Spanish；French；German；Hungary；Italian |
| DECODE CAPABILITY | 1D: ● Code25-Interleaved ● Code25-Standard ● Code25-Matri ● RSS-14 ● Code39-Regular ● Code39-FullASCII ● Code93-Regular ● Code93-FullASCII ● Code128 ● Code11 ●UPCE0/E1 ● EAN/GSL/UCC-128Auto ● Codabar ●MSI ● EAN/JAN-13 ● UPC-A ●JAN/EAN-8 2D: ● Data Matrix ● QR ● PDF417 ● Micro QR ●MicroPDF417 ● AZTEC |
| COMPATIBILITY | Windows, Linux, Android, MAC OS |
| MECHANICAL SHOCK | 1.2m free fall on concrete |
| OPERATING TEMPERATURE | 0℃ to 50℃ / 32℉ to 122℉ |
| STORAGE TEMPERATURE | 0℃ to 50℃ / 32℉ to 122℉ |
| OPERATING HUMIDITY | 20% to 85%（No Condensation） |
| STORAGE HUMIDITY | 20% to 85%（No Condensation） |
| DIMENSIONS | 180.1 x 88.7 x 66.3 (L x W x H) |
| WEIGHT | 108g ±5g |
