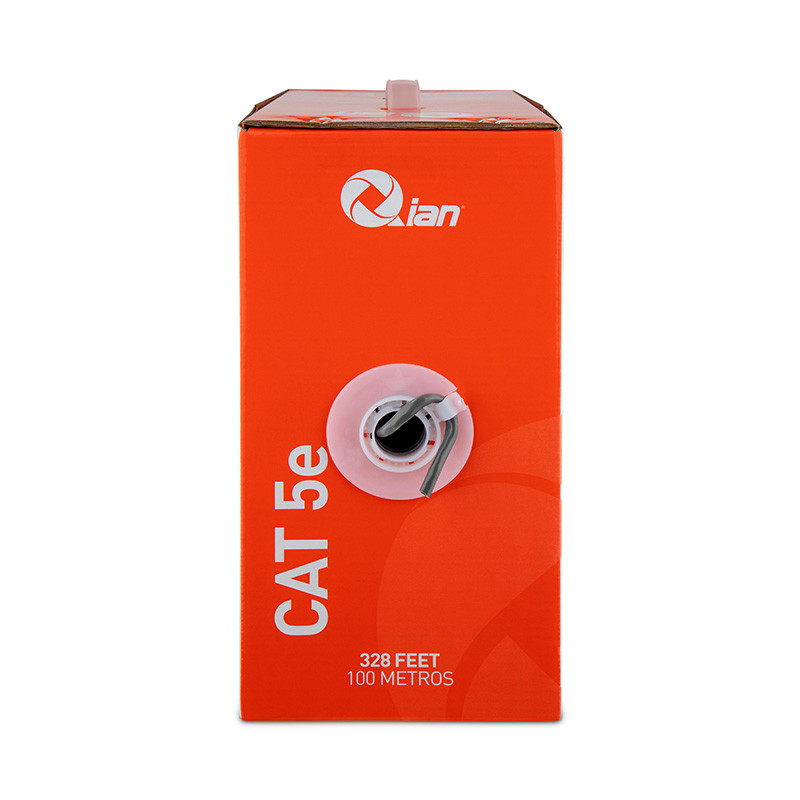

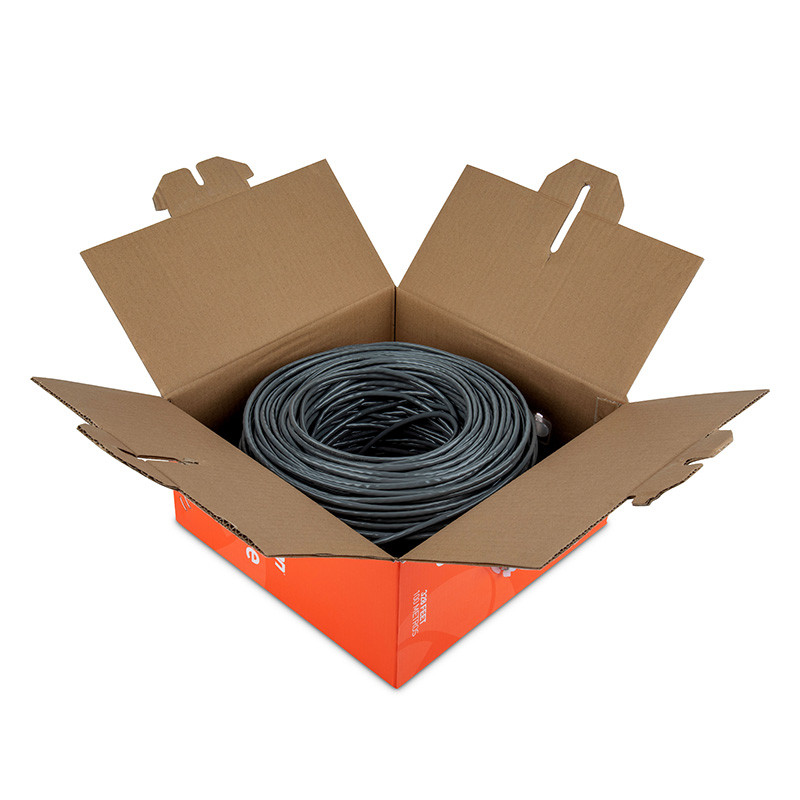

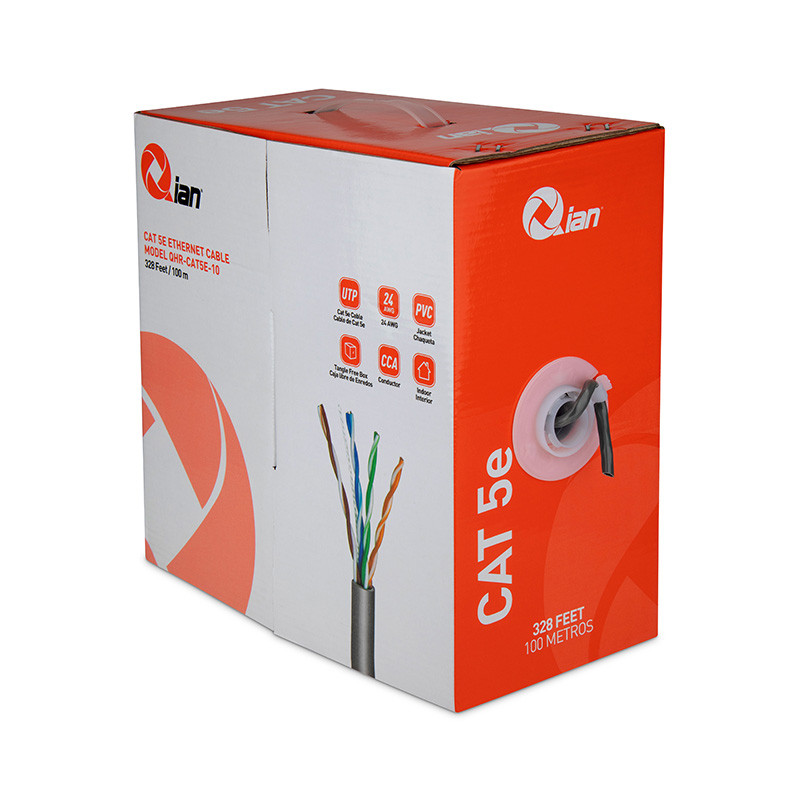

Tangle-Free Design
With an easy-to-use pull-out box, the cable facilitates installation and storage without tangles, reducing deployment time and simplifying maintenance tasks.
- Home
- QIAN PC
- POS Solutions
- BUSINESS WE TRUST
- AUTHORIZED DISTRIBUTORS
Anticrosstalk design
The PE CROSS structure improves anti-crosstalk performance, optimizing signal clarity and minimizing interference, ensuring consistent and reliable network performance.

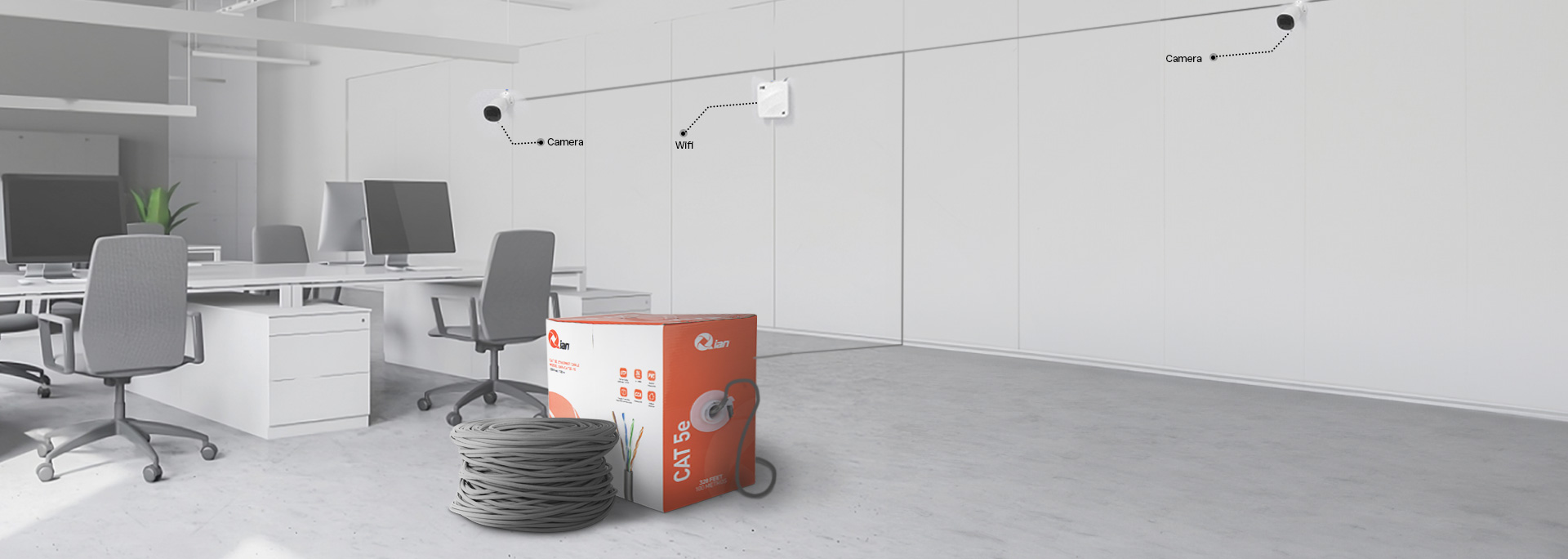

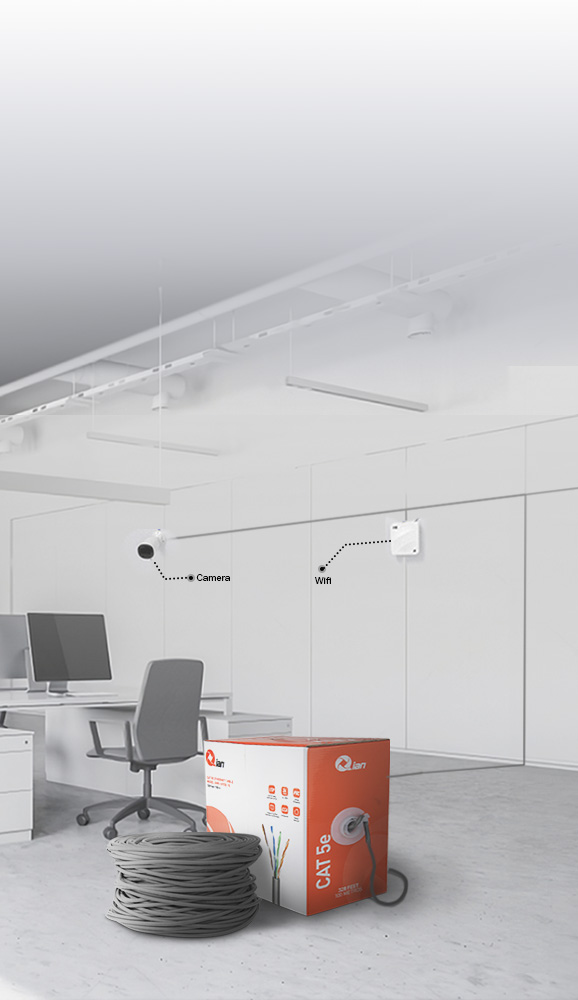

Expanded Scope

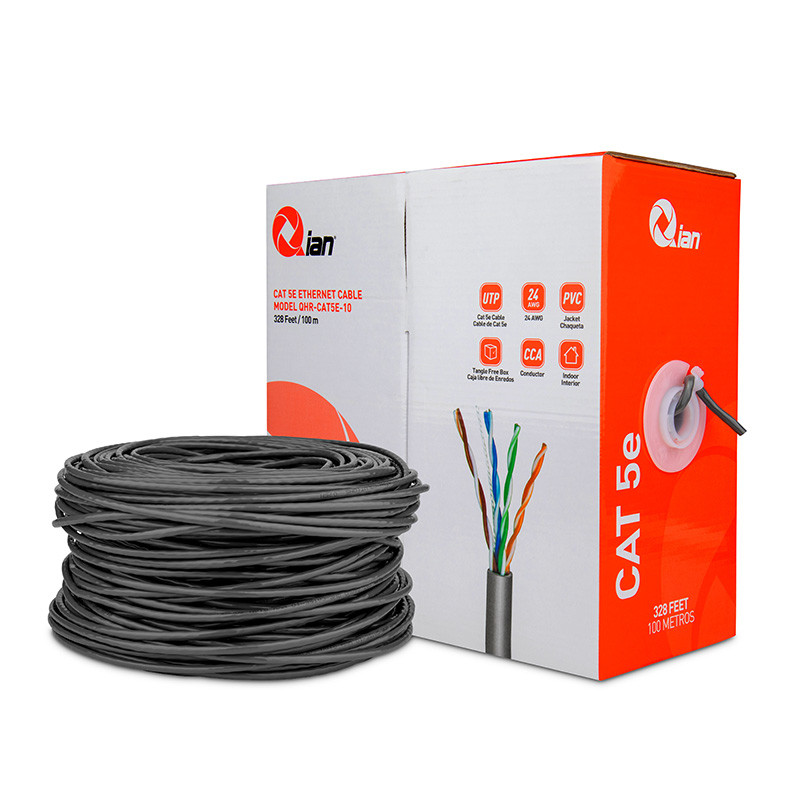

Enjoy the convenience of 100 meters of high-quality Cat 5e Ethernet cable, ideal for extensive network setups without compromising performance.

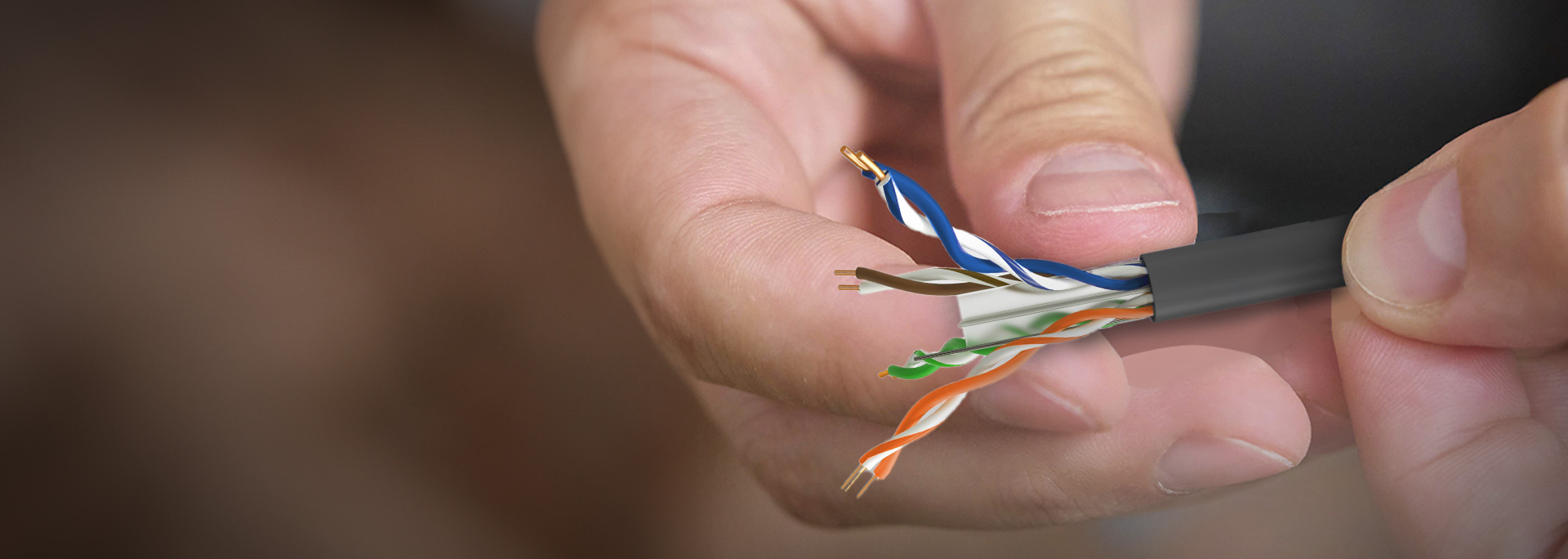

Improved Signal Clarity

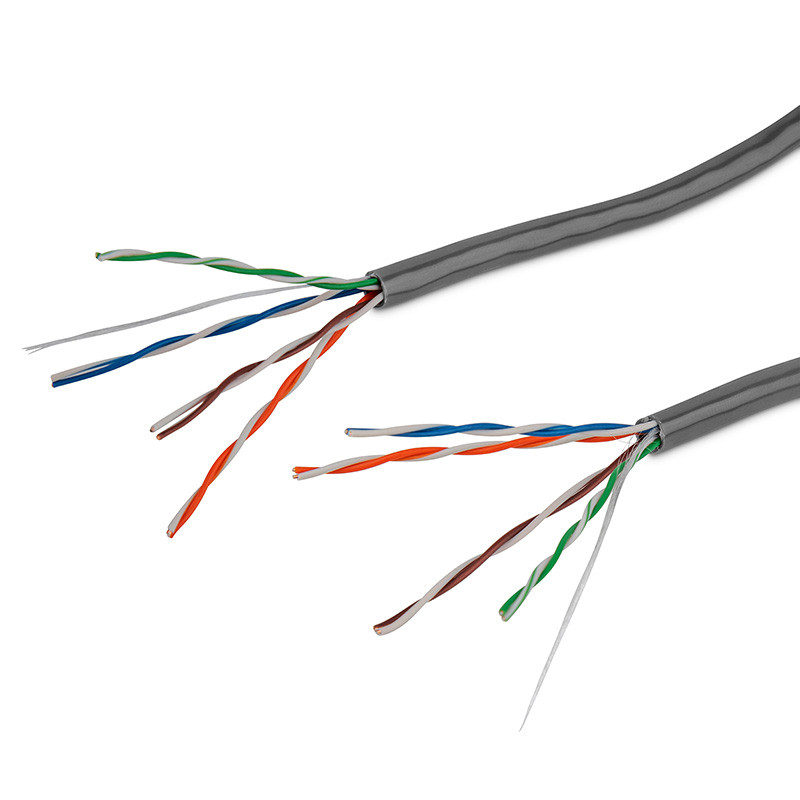

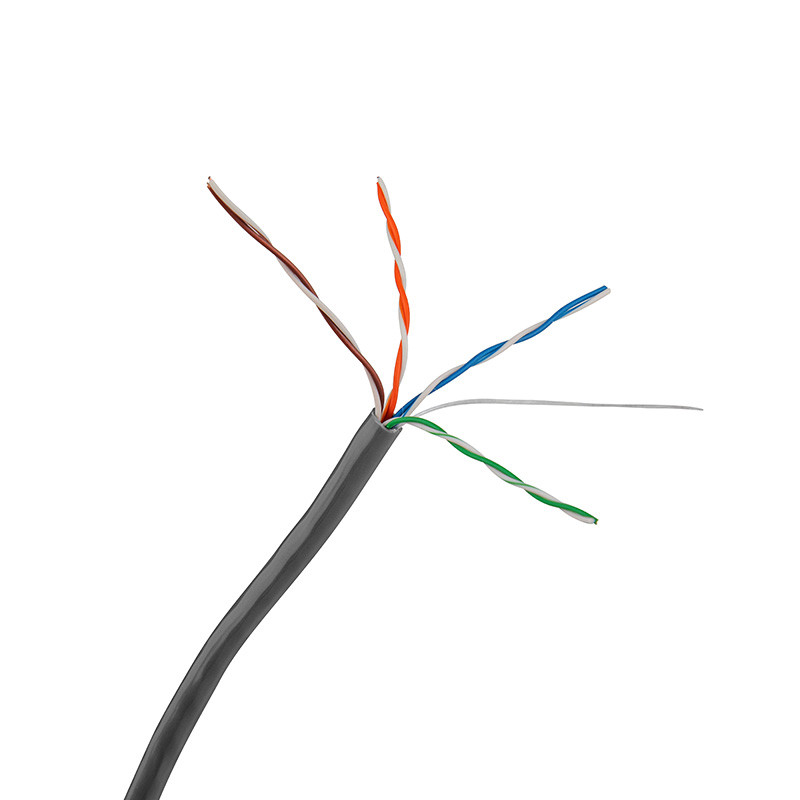

The use of 4 twisted pairs of cables minimizes crosstalk and electromagnetic interference (EMI), delivering clear and stable signals for uninterrupted communication and data transfer.

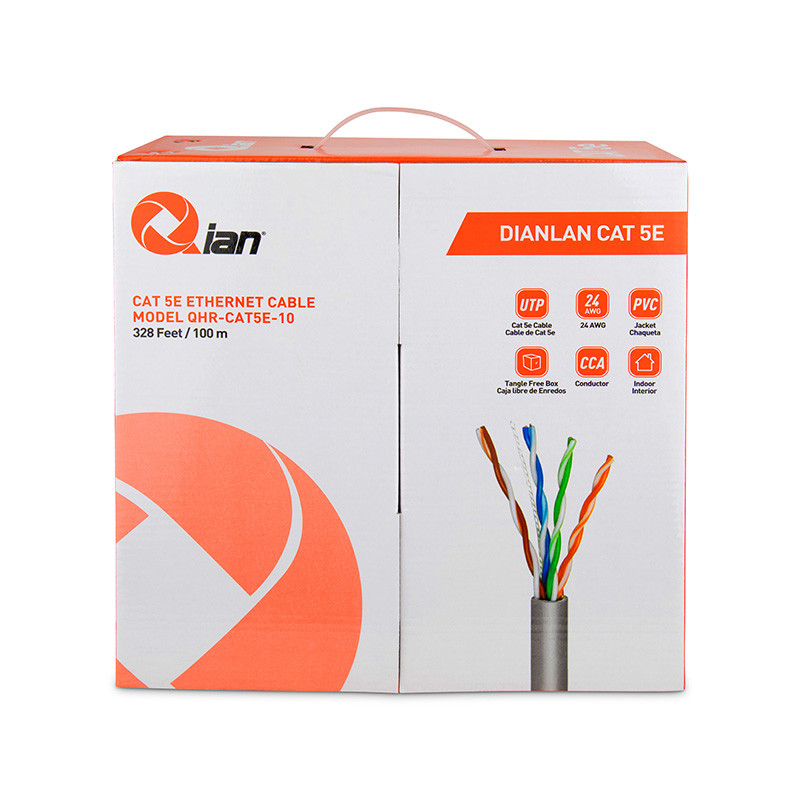

| CABLE TYPE | UTP Cat 5e Network Cable |
| CONDUCTOR MATERIAL | CCA |
| CONDUCTOR STRUCTURE | Solid |
| JACKET MATERIAL | PVC |
| INSULATION THICKNESS | 0.18mm |
| JACKET THICKNESS | 0.62mm (±0.02mm) |
| STRETCHING RESISTANCE | (max) 250N |
| MINIMUM BENDING RADIUS | ＞4D |
| WORKING CAPACITANCE (MAX.) | 5.4nF/100m |
| TRANSMISSION VELOCITY | 72% |
| COLOR | Grey |
| CONDUCTOR SIZE | 24AWG (0.5mmCCA) |
| TWISTED PAIR | 4 Pairs |
| INSULATIONMATERIAL | PE |
| INSULATION DIAMETER | 1.0mm (±0.02mm) |
| OUTER DIAMETER | 5.0mm (±0.2mm) |
| IMPEDANCE | 100±15%Ω at 1~100MHz |
| DCRESISTANCEIMBALANCE | 2.5% |
| INSULATION RESISTANCE | ≥5000MΩ.km |
| OPERATING TEMPERATURE | -40 °C - 70 °C |
| CABLE LENGTH | 100m/pull out box (328ft/ pull out box) |
| APPLICATION | Home/ Small office wiring system/ Short distance POE power supply |
| DIMENSIONS | 28 x 28 x 14 cm |
| WEIGHT | 2.48kg |
