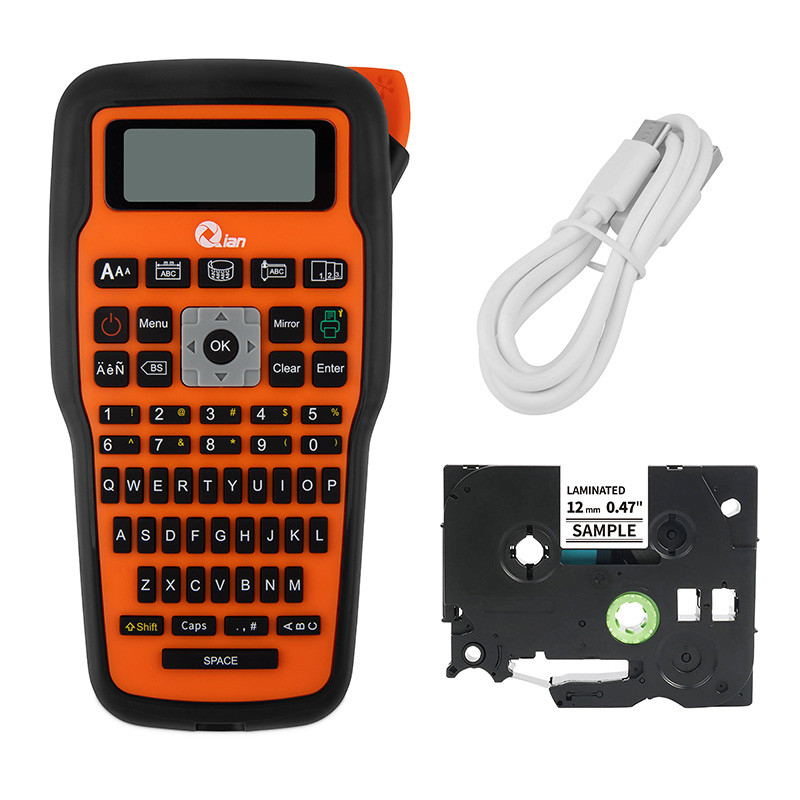

TYPE | Label Maker |
PRINTING METHOD | Thermal Transfer Printing |
PRINTING RESOLUTION | 180 DPI |
LABEL WIDTH | 3.5mm (0.14 inch)/ 6mm (0.24 inch)/ 9mm (0.35 inch)/ 12mm (0.47 inch) |
MAX PRINTING HEIGHT | 9mm (on 12mm label) |
MAXIMUM PRINTING LINES | 3.5mm/6mm: 1 Line
9mm: 3 Lines
12mm: 4 Lines |

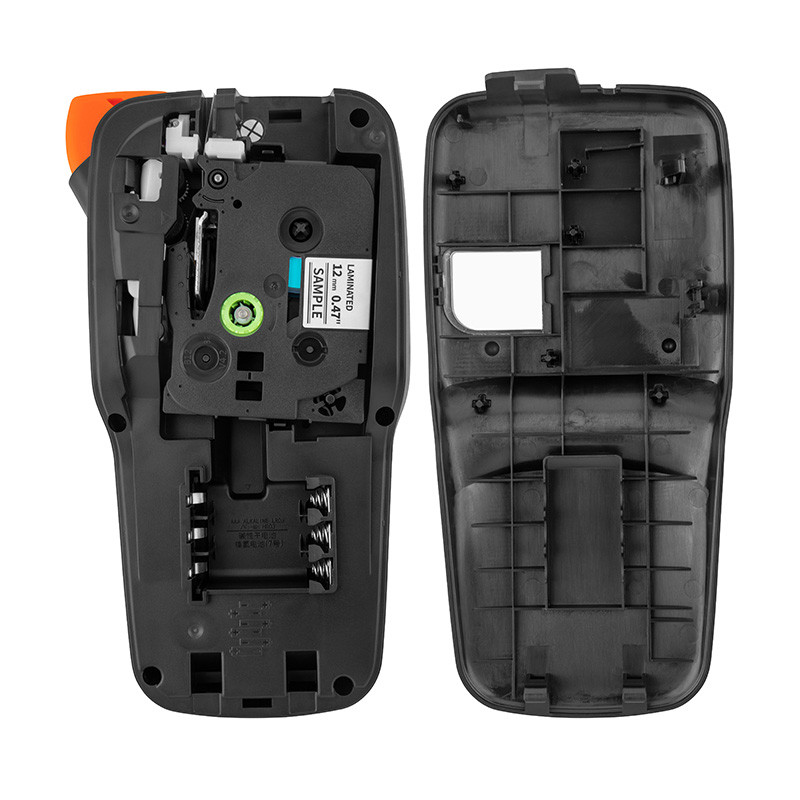

LABEL TAPE | Laminated (Compatible with TZe label tape) |
PRINTING SPEED | 20mm/s (Max.) |
DISPLAY | 14 characters * 1 line |

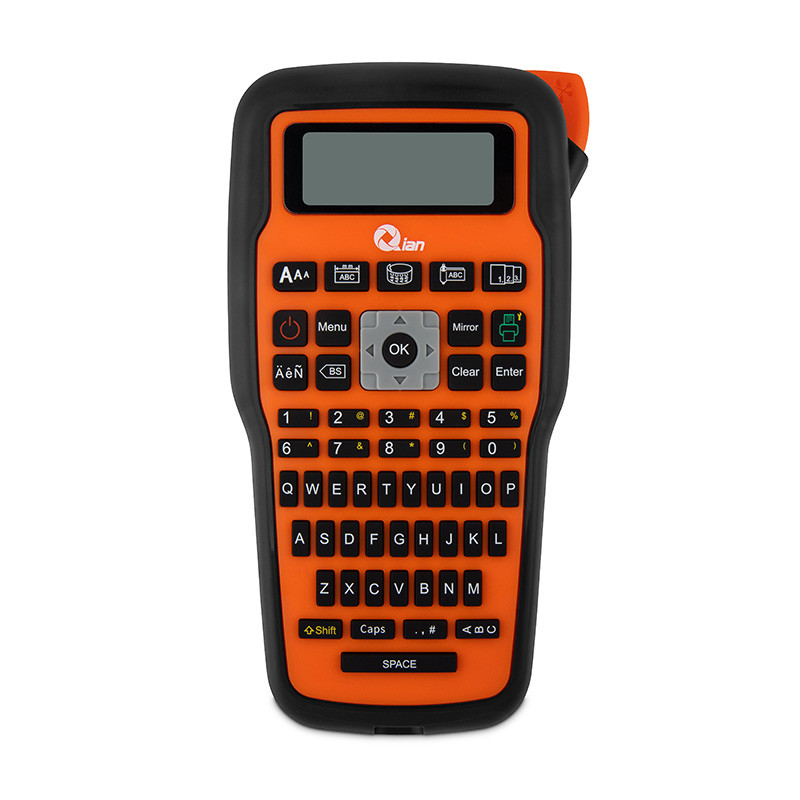

KEY | QWERTY keyboard |

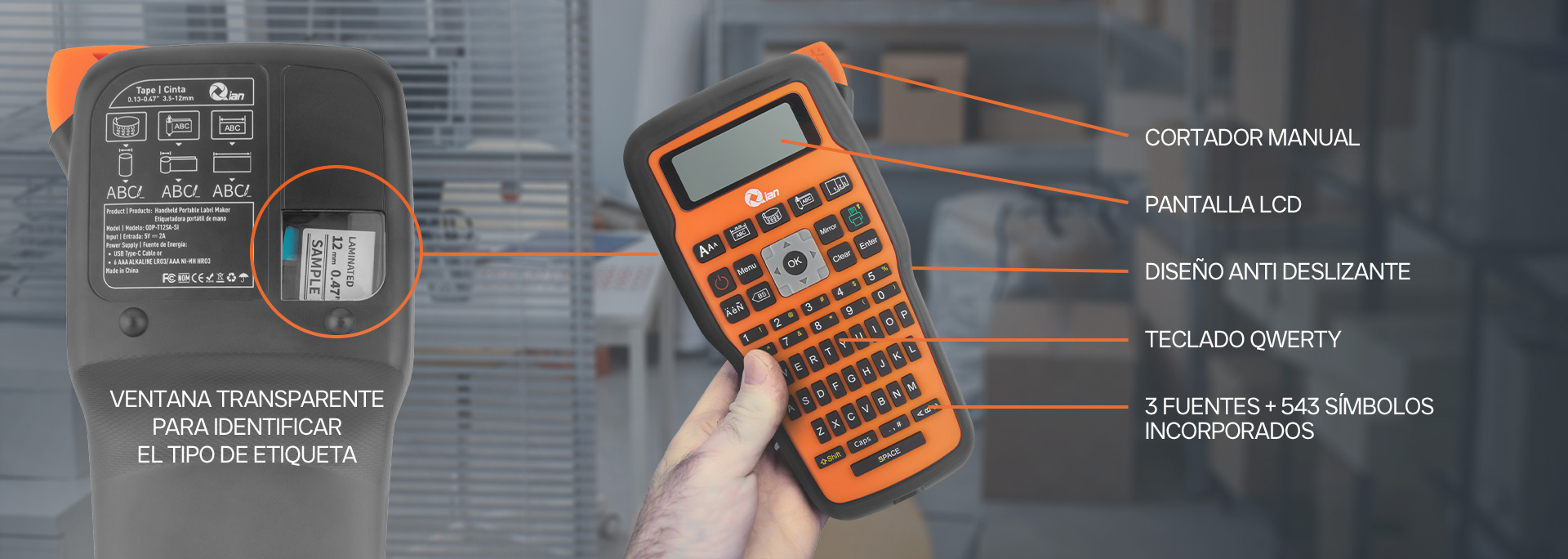

CUTTING METHOD | Manual cutting |
LABEL LENGTH | Up to 800mm depending on the label content |

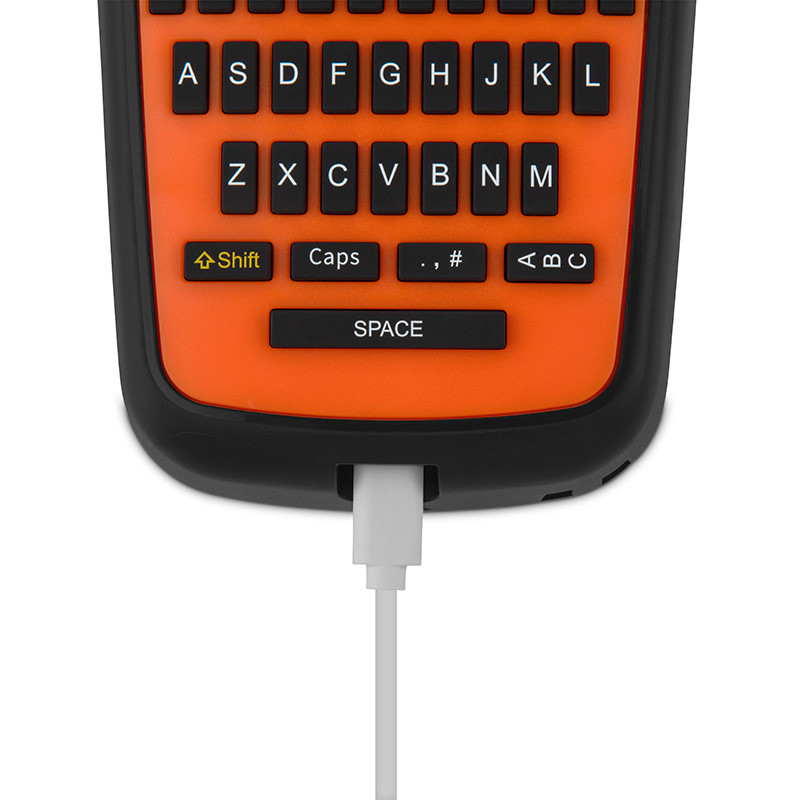

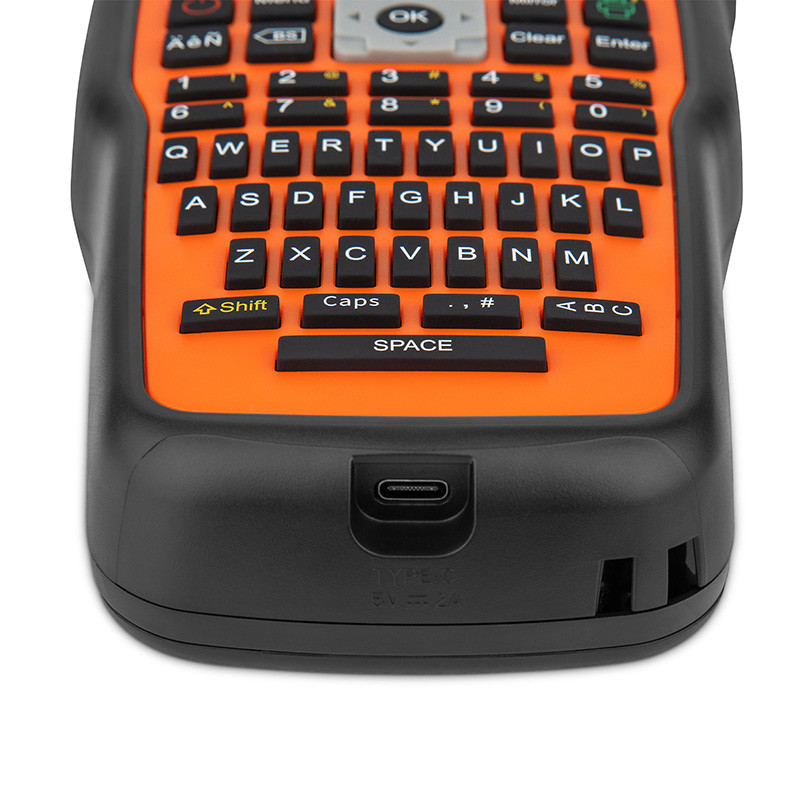

POWER INPUT | 5V⎓2A (Type-C) |
POWER SUPPLY | By USB Type-C or AAA ALKALINELRO3/AAA NI-MH HRO3 x6pcs |
MENU LANGUAGES | 22 languages supported:
Czech, Danish, German, English, Spanish, French, Croatian, Italian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Finnish, Swedish, Turkish, Estonian, Latvian, Lithuanian |
MEMORY BUFFER SIZE | 1600 Characters (Can print 20 serial labels, up to 80 characters on each label.) |
AVAILABLE MEMORY | 9 labels (1 label * 9 copies). Up to 80 characters on each label. |
FONT SIZE | Large, Medium, Small |
FONT STYLE | 3 (Normal, Bold, Italic) |
FONT TYPE | 16 |
TEXT FORMAT | [Text Size]: Adjust the text size to fit the label length.
[Text Width]: Adjust by condensing the character width.
[Text Style]: Adjust the style of the font.
[Text Aligment]: Adjust the alignment of the font. |
TEXT WIDTH | Normal, x2, x1/2 |
FRAME | Underline frame, Square frame, Round corner frame |

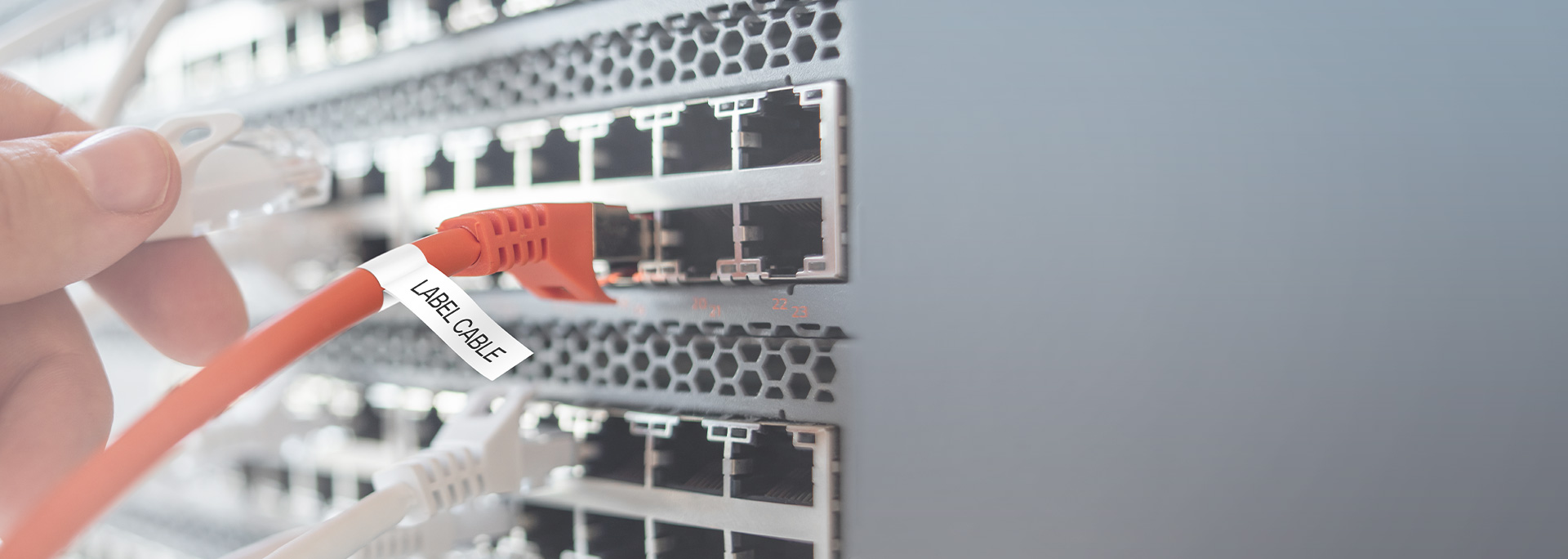

LABEL STYLE | Faceplate Label, Cable Wrap Label, Cable Flag Label |
PRINT COPY OPTION | From 1 to 9 copies |
MARGIN | Full: Equal margins on both sides are 25mm
Half: Equal margins on both sides are 12mm
Narrow: Equal margins on both sides are 4mm |
MIRROR MODE | Support |
AUTOMATIC MEMORY FUNCTION | Support |
RIBBON TIGHTENING FUNCTION | Support |
BARCODE TYPE | CODABAR, CODE39, ITF25, CODE128, EAN13, EAN8, UPCA and UPCE |
ADDITIONAL CHARACTERISTICS | 1. With built-in 543 symbols
2. Support Mirror Print
3. Support Multiple Editing
4. Support Barcode Printing
5. Support Last-label Memory |
CONSUMABLES IDENTIFICATION FUNCTION | Manual selection |
AUTOMATIC TURN-OFF | After 5 minutes |
SWITCHING UPPER CASE/LOWER CASE | Press Caps button to switch to upper case or lower case |
SHORTCUT KEYS | Shift+Print key=Multiple Copies(1-9); Shift+Number(0-9)=Access to special characters |
DIMENSIONS | 213 x 116.5 x 61.5 mm (8.4 x 4.6 x 2.4 inch) |
NET WEIGHT | 440g (0.97lb) |
