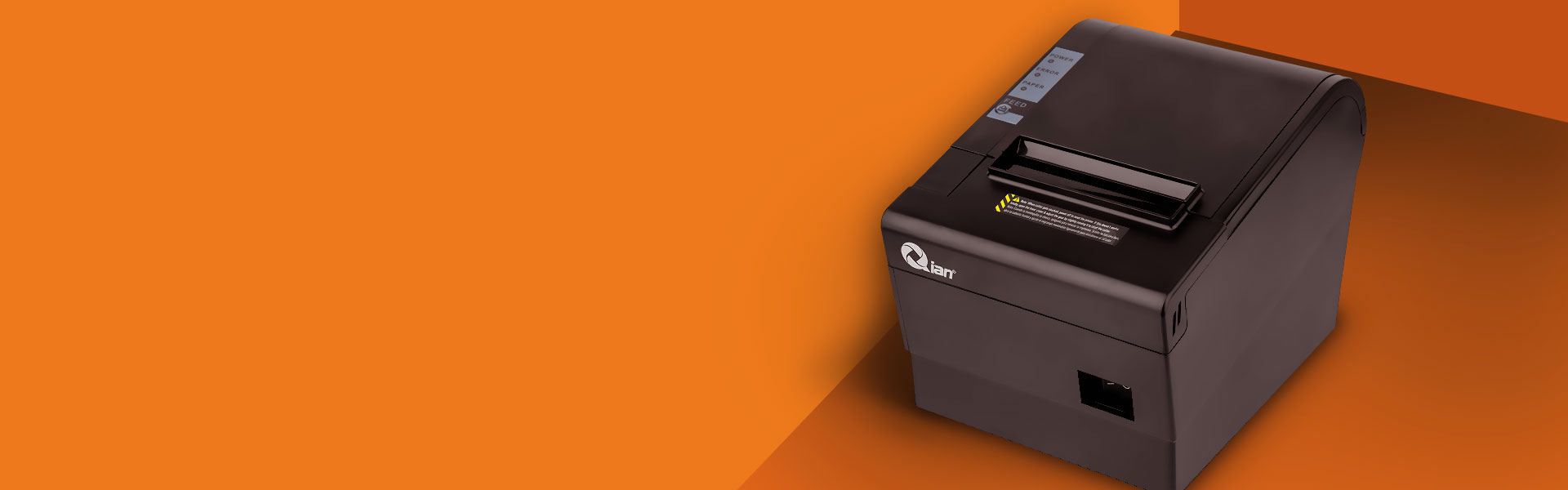

QIAN Thermal Receipt Printer 80mm with USB+LAN - SKU: QOP-T80UL-RI

- Enables seamless integration into your existing setup and ensures reliable and efficient communication between devices.
- Ensures that you can print wider receipts, accommodating more content such as detailed information.
- Complete print jobs quickly, enabling faster customer service, reducing waiting times, and enhancing overall productivity in busy retail or hospitality environments.
- This ensures greater reliability, reduced downtime, and cost savings over time, as you can expect fewer maintenance issues and a longer lifespan for the printer.
- The printer's support for wall hanging installation provides flexibility in special environment printing

Availability: Coming Soon

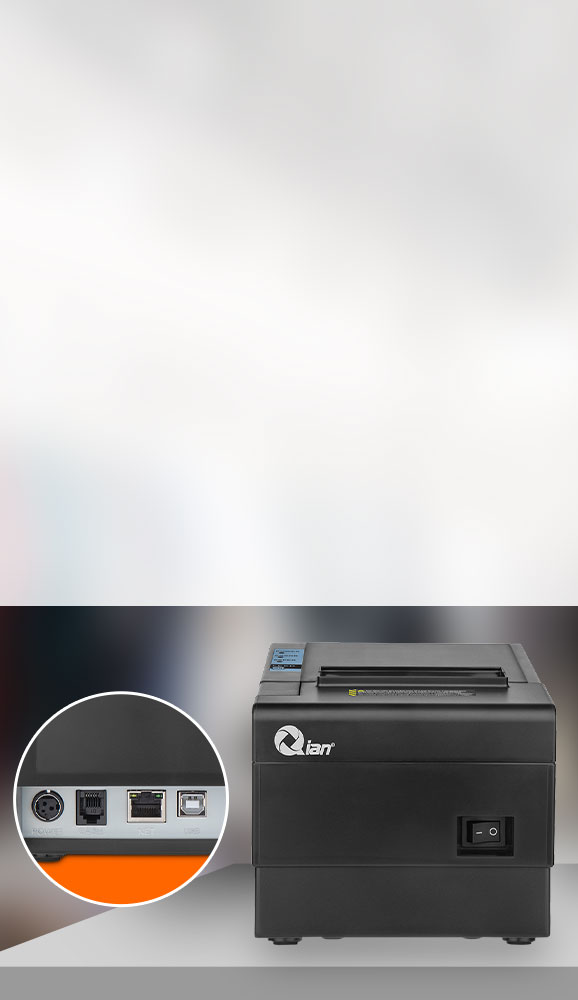

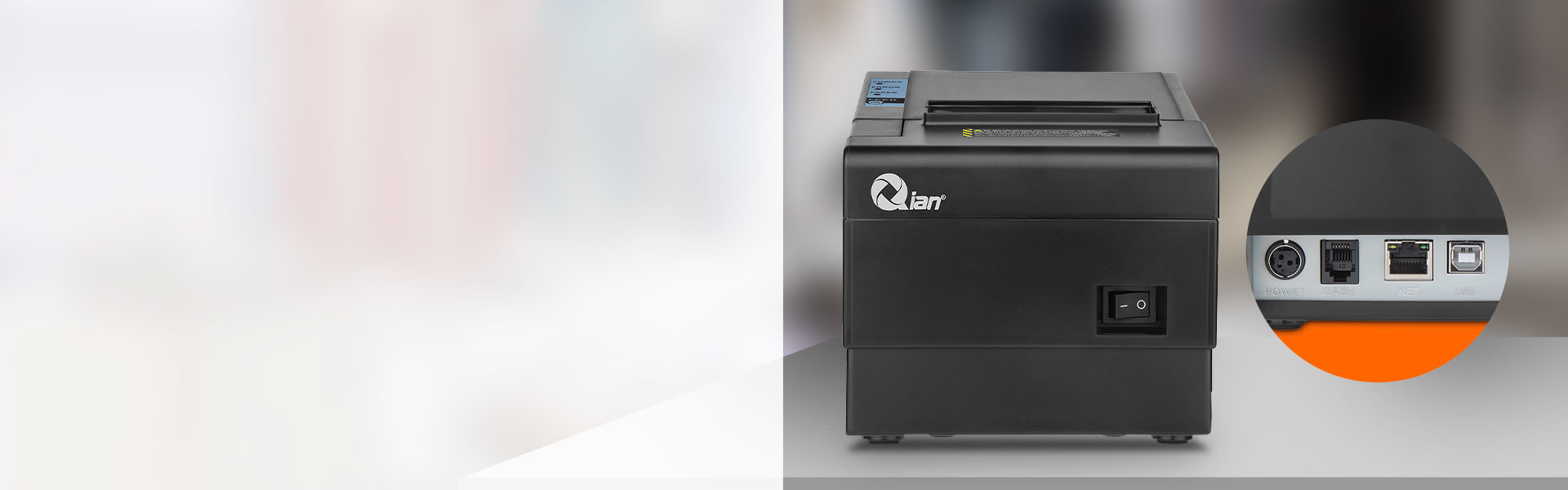

Interface: USB + LAN

It allows seamless integration into your existing equipment and ensures reliable and efficient communication between devices.
Recover printing function after network disconnection to avoid losing invoices.

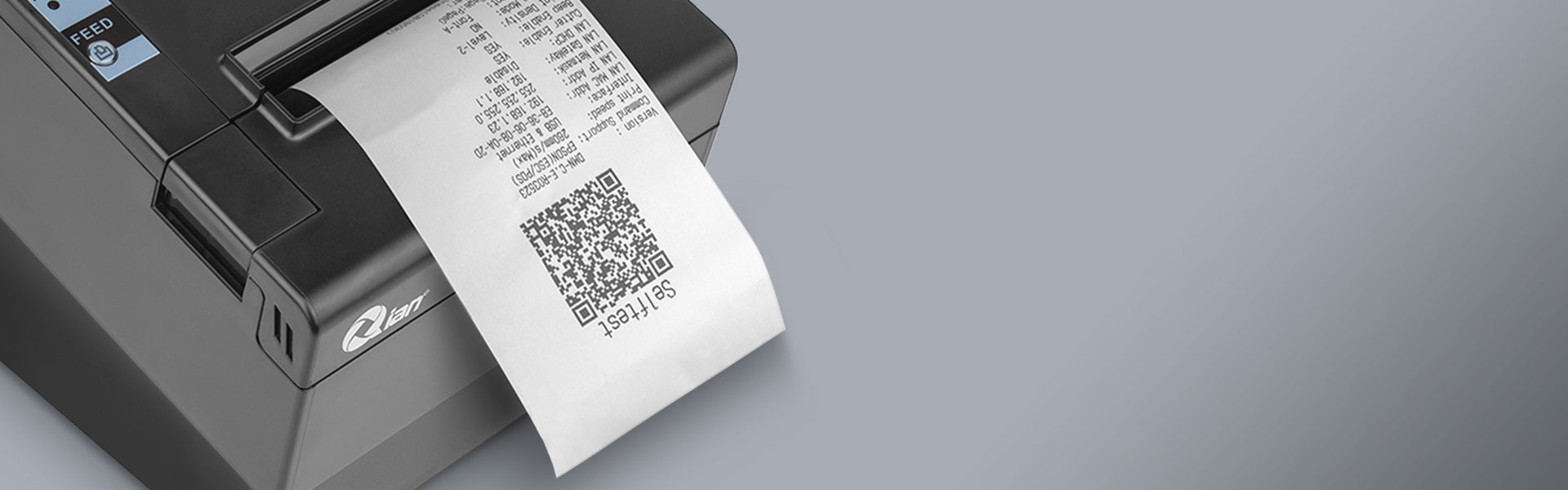

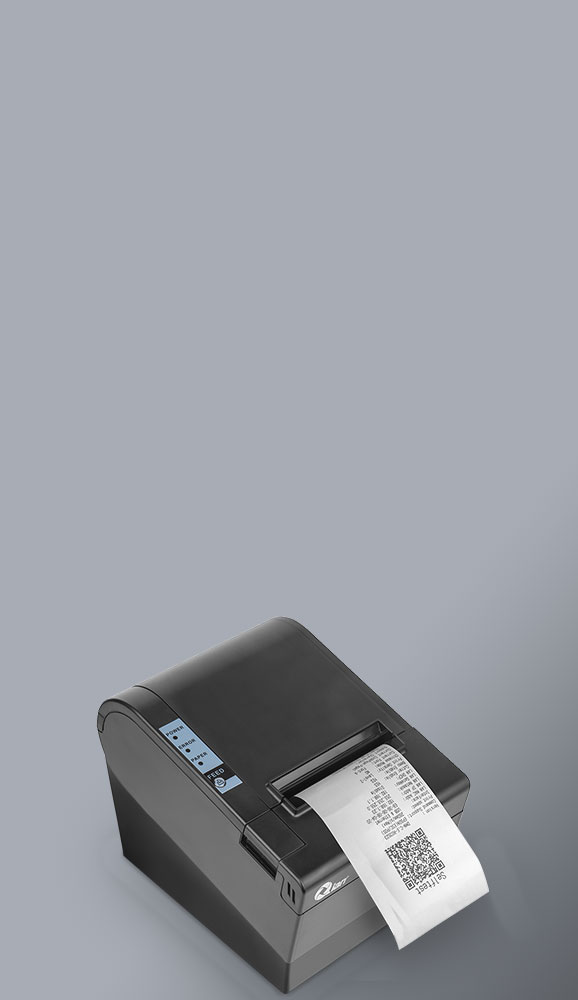

thermal printing

• High speed printing of 260 mm/s for greater efficiency

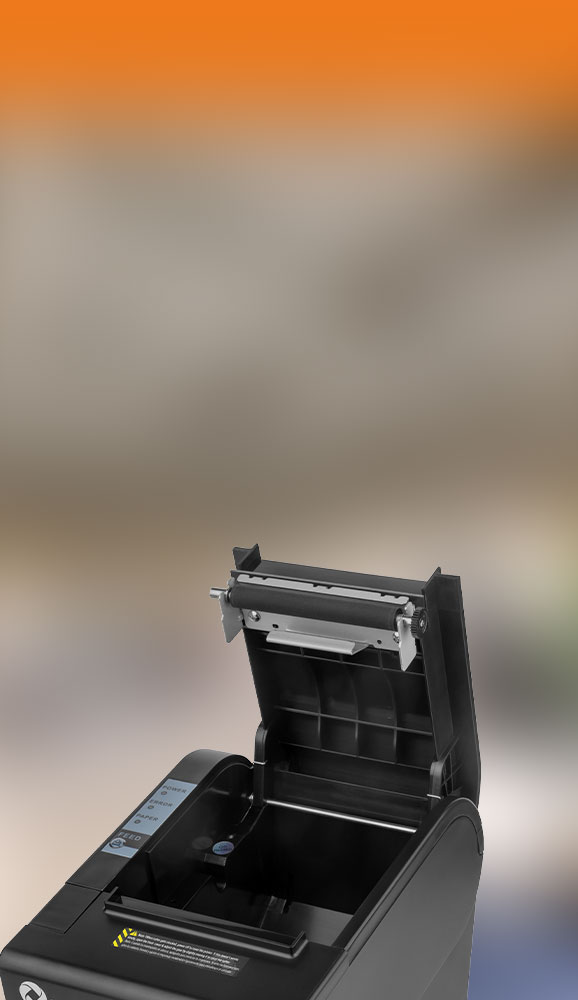

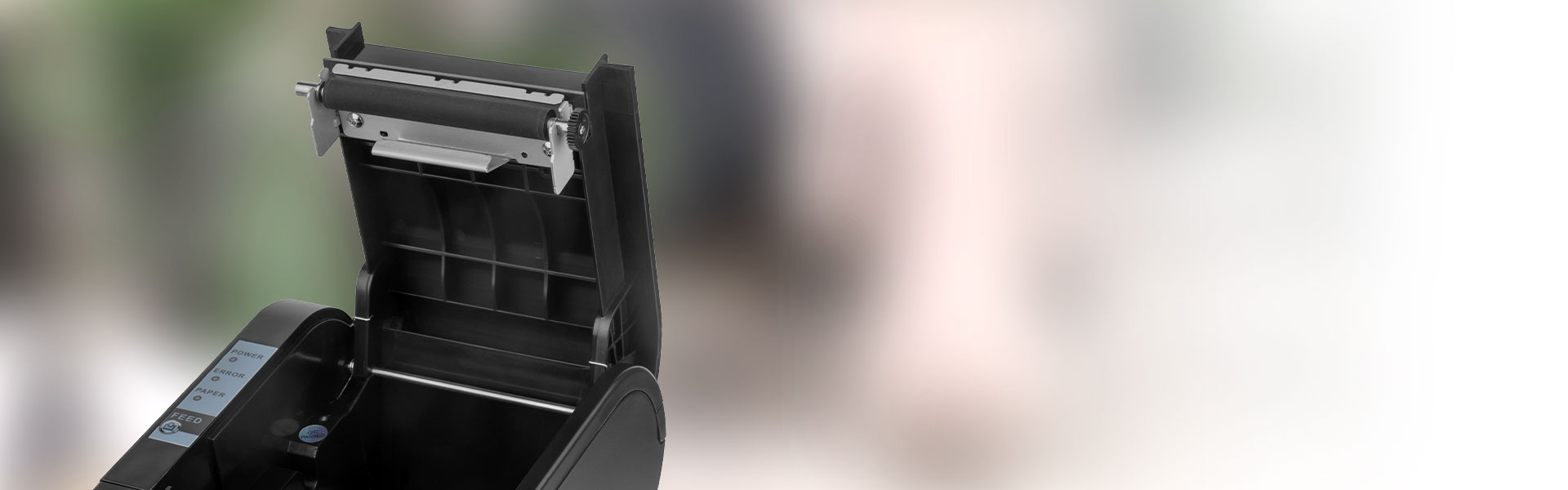

• Automatic paper position detection
• Highly compatible with various types of paper. (Continuous label, Label with space, Waybill, Label roll Paper label)
• Easy feeding.

ROHM head from Japan

This ensures greater reliability, reduced downtime and cost savings over time with fewer maintenance issues and longer printer life.
The service life of the print head reaches 150 km.

With automatic cutter

Enables clean, precise automatic cutting of receipts after printing, eliminating the need for manual tearing or using additional tools.

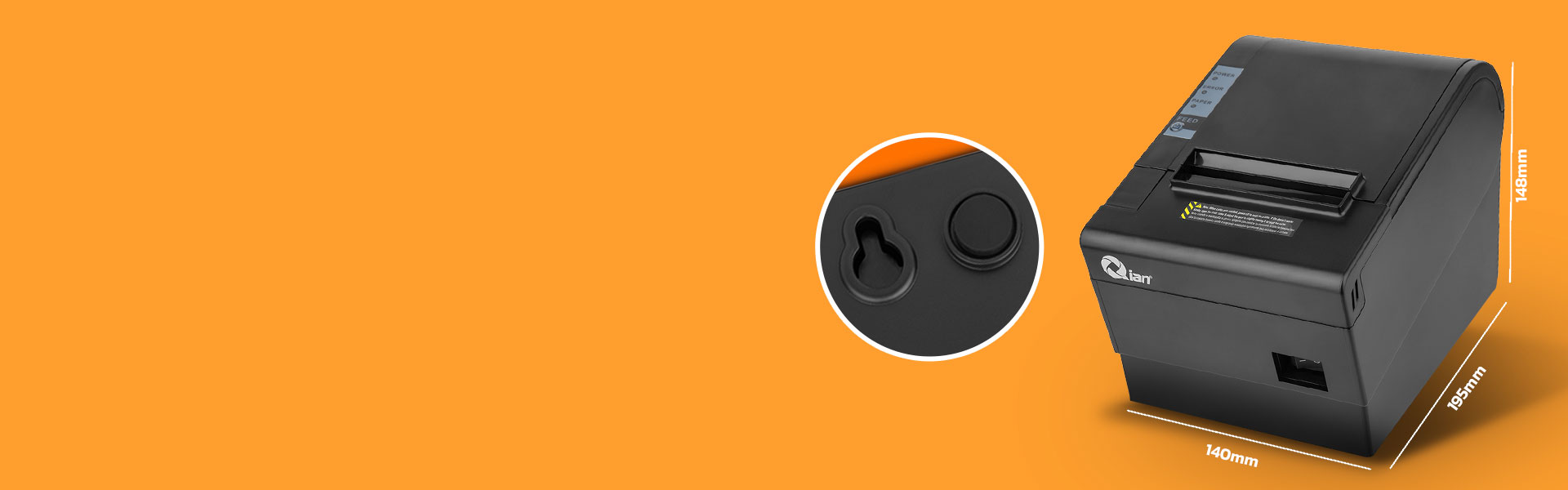

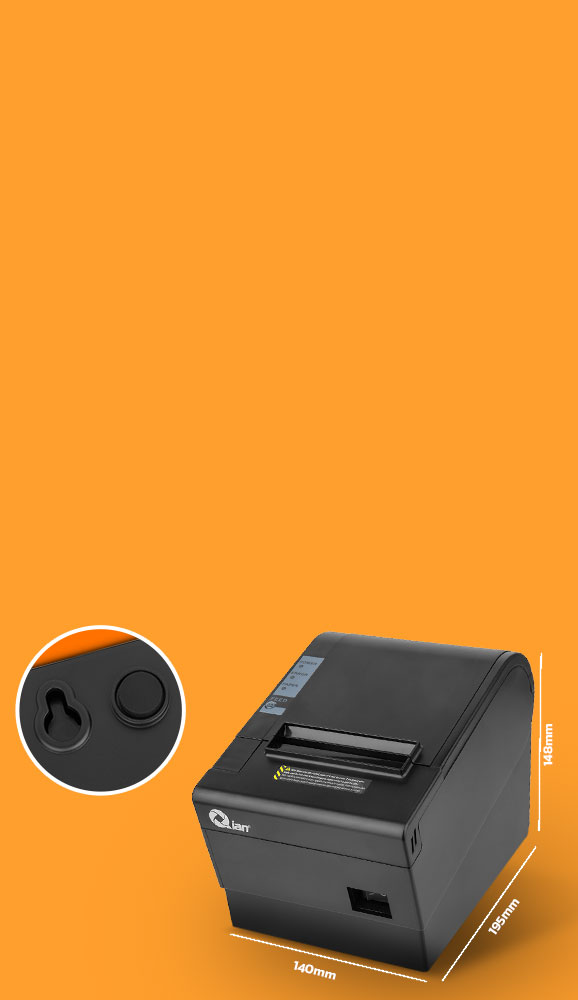

Space-Saving Installation and Great Convenience

The wall hanging installation bracket allows you to save valuable counter space, making it ideal for environments with limited space or specialized printing requirements.

Technical sheet (QOP-T80UL-RI)

Manual (QOP-T80UL-RI)

Download DRIVERS (QOP-T80UL-RI)

Sales Kit (QOP-T80UL-RI)

Warranty

TYPE	Thermal Receipt Printer
INTERFACE	USB+LAN
PRINTING METHOD	Thermal Line
RESOLUTION	8 dots /mm (203dpi), 576 Dots/Line or 512 Dots/Line
PRINTING SPEED	260mm/sec.
MAXIMUM PRINTING WIDTH	72mm
SPACING LINE	3.75mm (Line spacing can be adjusted by command)
PAPER	Thermal Roll Paper
PAPER PARAMETERS	≤80mm
ROLL PAPER	Width: 79.5±0.5mm
AUTO CUTTER	Full cut/ Half cut
PRINTING COMMAND	ESC/ POS
GRAPHICS PRINTING	Supports bitmap download and print
CHARACTER	Standard GB18030 simplified / BIG5 traditional Chinese Fonts (Japanese and Korean optional)
CHARACTER SIZE	ANK character: Font A: 1.5×3.0mm (12×24 dots) Font B: 1.1×2.1mm (9×17 dots) Simplified/ Traditional Chinese: 3.0×3.0mm (24×24 dots）
EXTENDED SET OF CHARACTERS	C437/ Katakana/ PC850/ PC860/ PC863/ PC865/ WestEurope/ Greek/ Hebrew/ EastEurope/ Iran/ WPC1252/ PC866/ PC852/ PC858/ IranII/ Latvian/ Arabic/ PT151,1251/ PC737/ WPC/ 1257/ ThaiVietnam/ PC864/ PC1001/ (Latvian)/ (PC1001)/ (PT151,1251)/ (WPC1257)/ (PC864)/ (Vietnam)/ (Thai)
BARCODE	1D Barcode: UPC-A/ UPC-E/ JAN13(EAN13)/ JAN8(EAN8)/ CODE39/ ITF/ CODABAR/ CODE93/ CODE128 2D Barcode: QRCODE
MEMORY	NV Flash 256K bytes
ADDITIONAL CHARACTERISTICS	Print Head Life: 150km (print density≤12.5) Cutter Life: 1,500,000 times Feed method: Easy feed (Clamshell feed)
POWER SUPPLY	Input：AC 100V-240V,50-60Hz Output：DC 24V/2.5A
CASH DRAWER CONTROL	Cash drawer output: DC 24V/1A
OPERATING TEMPERATURE	5°C ~ 45°C
STORAGE TEMPERATURE	-10°C ~ 50°C
OPERATING HUMIDITY	10%~80% (No condensation)
STORAGE HUMIDITY	10%~90% (No condensation)
DIMENSIONS	140mm(W) × 148mm(H) × 195mm(D)
WEIGHT	1.15KG

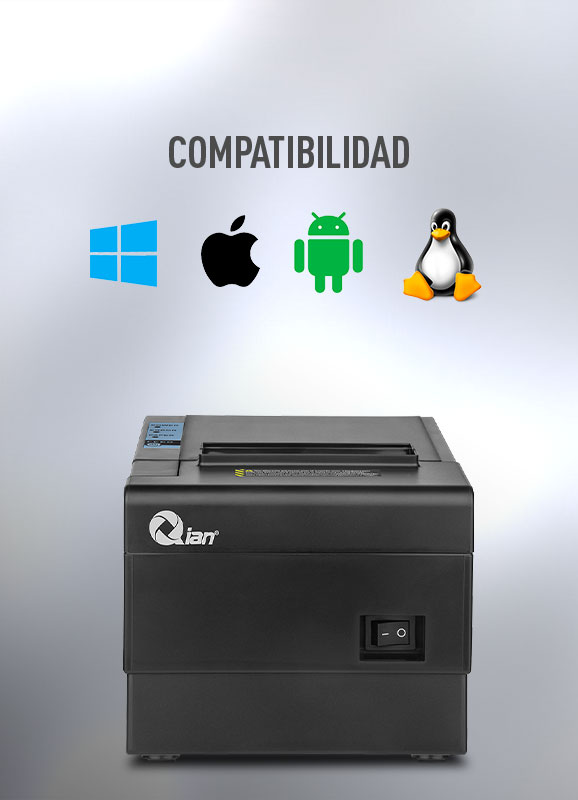

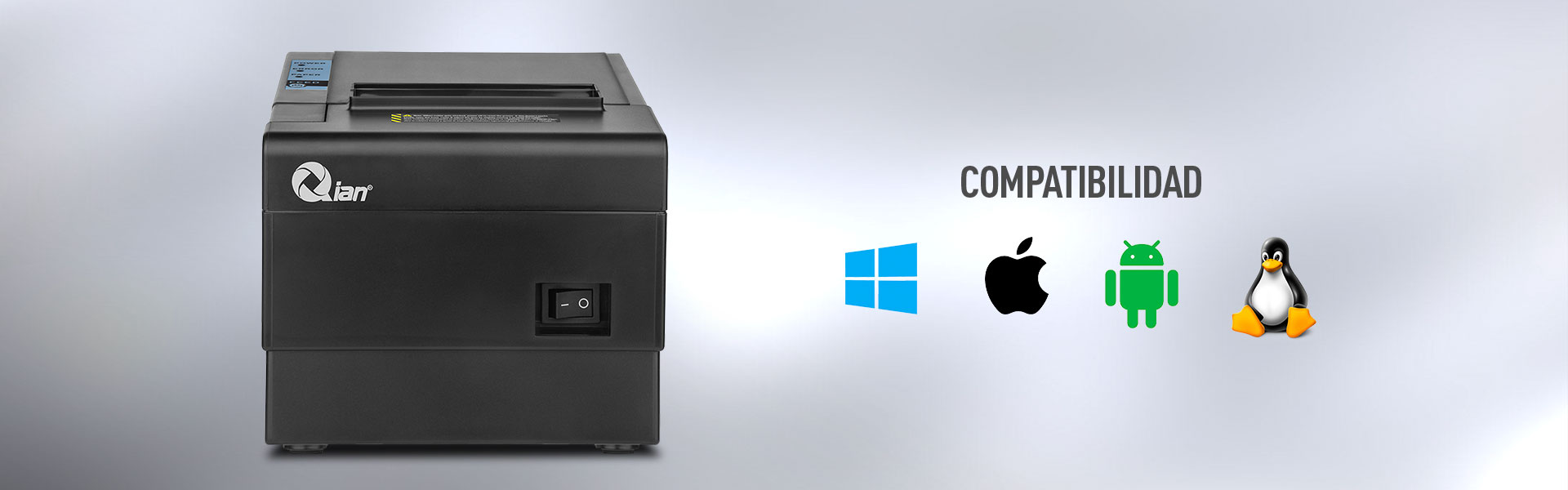

OPERATION SYSTEM	Support Windows/ Android/ iOS/ Linux operating system. (Driver available for Windows/ Linux/ Mac)
